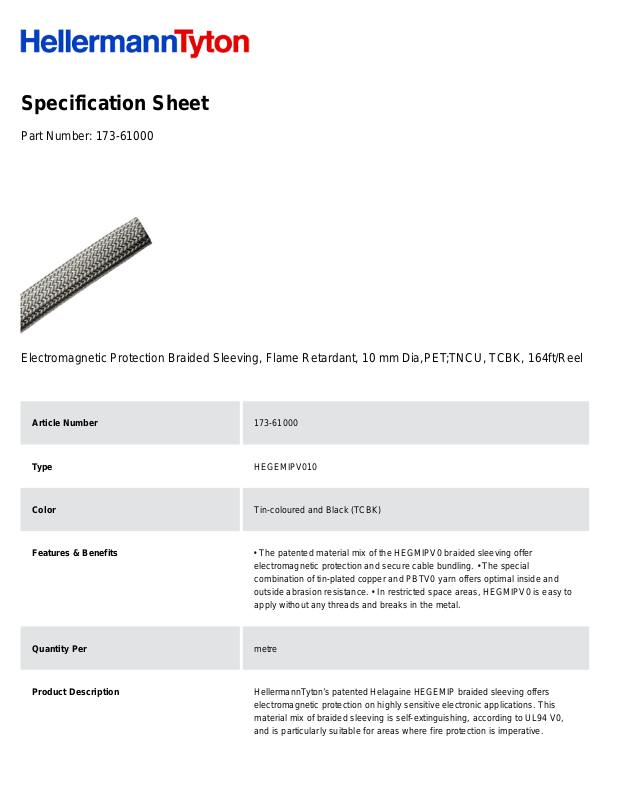

Specification Sheet
Part Number:
173-61000
Electromagnetic Protection Braided Sleeving, Flame Retardant, 10 mm Dia,PET;TNCU, TCBK, 164ft/Reel
Article Number
173-61000
Type
HEGEMIPV010
Color
Tin-coloured and Black (TCBK)
Features & Benefits
• The patented material mix of the HEGMIPV0 braided sleeving offer
electromagnetic protection and secure cable bundling. • The special
combination of tin-plated copper and PBTV0 yarn offers optimal inside and
outside abrasion resistance. • In restricted space areas, HEGMIPV0 is easy to
apply without any threads and breaks in the metal.
Quantity Per
metre
Product Description
HellermannTyton’s patented Helagaine HEGEMIP braided sleeving offers
electromagnetic protection on highly sensitive electronic applications. This
material mix of braided sleeving is self-extinguishing, according to UL94 V0,
and is particularly suitable for areas where fire protection is imperative.
Short Description
Electromagnetic Protection Braided Sleeving, Flame Retardant, 10 mm
Dia,PET;TNCU, TCBK, 164ft/Reel
Global Part Name
HEGEMIPV010-PBT/TNCU-ML
Length L (Imperial)
164.0
Length L (Metric)
50.0
Bundle Diameter Min (Imperial)
0.32
Bundle Diameter Min (Metric)
8
Bundle Diameter Max (Imperial)
0.52
Bundle Diameter Max (Metric)
13
Diameter D (imperial)
0.39
Diameter D (metric)
10
Nominal Diameter (Imperial)
3/8
Nominal Diameter (Metric)
10
Material
Tin-plated copper (SNCU) Polyester (PBT)
Material Shortcut
PBT TNCU
Flammability
UL 94 V0 FMVSS 302
