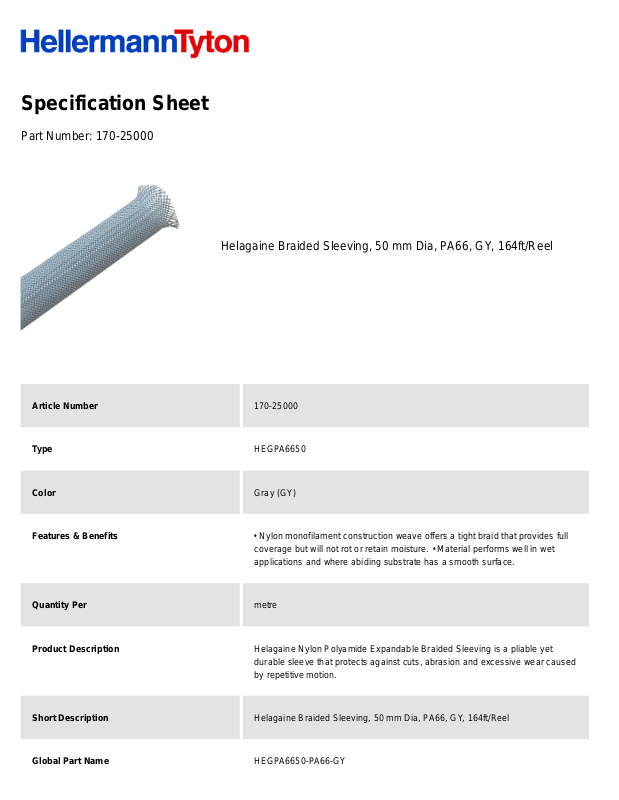

Specification Sheet
Part Number:
170-25000
Helagaine Braided Sleeving, 50 mm Dia, PA66, GY, 164ft/Reel
Article Number
170-25000
Type
HEGPA6650
Color
Gray (GY)
Features & Benefits
• Nylon monofilament construction weave offers a tight braid that provides full
coverage but will not rot or retain moisture. • Material performs well in wet
applications and where abiding substrate has a smooth surface.
Quantity Per
metre
Product Description
Helagaine Nylon Polyamide Expandable Braided Sleeving is a pliable yet
durable sleeve that protects against cuts, abrasion and excessive wear caused
by repetitive motion.
Short Description
Helagaine Braided Sleeving, 50 mm Dia, PA66, GY, 164ft/Reel
Global Part Name
HEGPA6650-PA66-GY
Length L (Imperial)
164.0
Length L (Metric)
50.0
Bundle Diameter Min (Imperial)
1.58
Bundle Diameter Min (Metric)
40
Bundle Diameter Max (Imperial)
2.17
Bundle Diameter Max (Metric)
55
Diameter D (imperial)
1.97
Diameter D (metric)
50.0
Nominal Diameter (Imperial)
2
Nominal Diameter (Metric)
50
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
FMVSS 302 UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-76°F to +302°F (-60°C to +150°C)
