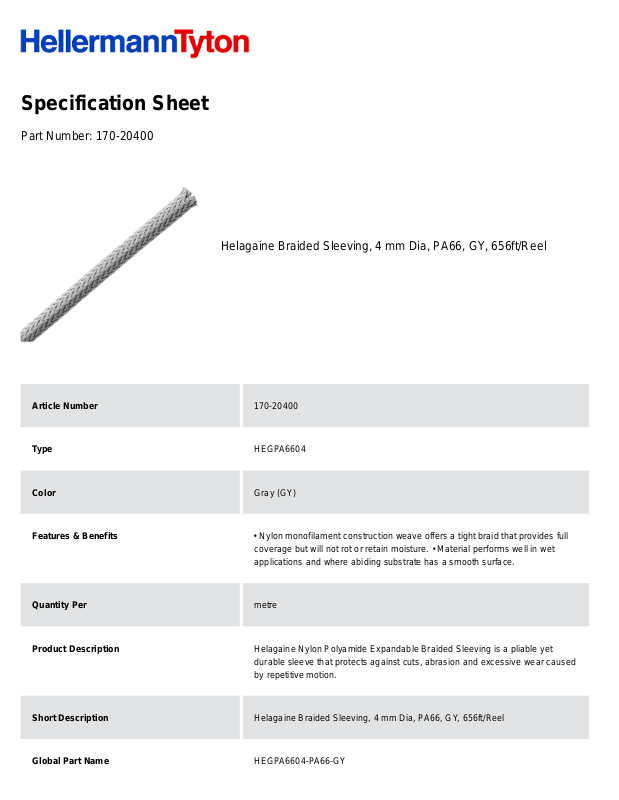

Specification Sheet
Part Number:
170-20400
Helagaine Braided Sleeving, 4 mm Dia, PA66, GY, 656ft/Reel
Article Number
170-20400
Type
HEGPA6604
Color
Gray (GY)
Features & Benefits
• Nylon monofilament construction weave offers a tight braid that provides full
coverage but will not rot or retain moisture. • Material performs well in wet
applications and where abiding substrate has a smooth surface.
Quantity Per
metre
Product Description
Helagaine Nylon Polyamide Expandable Braided Sleeving is a pliable yet
durable sleeve that protects against cuts, abrasion and excessive wear caused
by repetitive motion.
Short Description
Helagaine Braided Sleeving, 4 mm Dia, PA66, GY, 656ft/Reel
Global Part Name
HEGPA6604-PA66-GY
Length L (Imperial)
656.0
Length L (Metric)
200.0
Bundle Diameter Min (Imperial)
0.12
Bundle Diameter Min (Metric)
3
Bundle Diameter Max (Imperial)
0.24
Bundle Diameter Max (Metric)
6
Diameter D (imperial)
0.16
Diameter D (metric)
4.1
Nominal Diameter (Imperial)
5/32
Nominal Diameter (Metric)
4
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2 FMVSS 302
Halogen free
Yes
Operating Temperature (Metric)
-76°F to +302°F (-60°C to +150°C)
