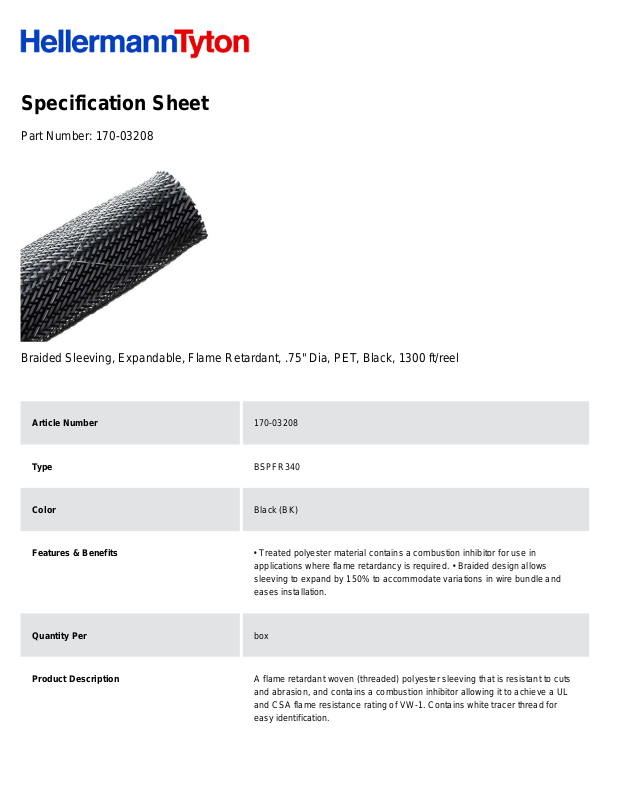

Specification Sheet
Part Number:
170-03208
Braided Sleeving, Expandable, Flame Retardant, .75" Dia, PET, Black, 1300 ft/reel
Article Number
170-03208
Type
BSPFR340
Color
Black (BK)
Features & Benefits
• Treated polyester material contains a combustion inhibitor for use in
applications where flame retardancy is required. • Braided design allows
sleeving to expand by 150% to accommodate variations in wire bundle and
eases installation.
Quantity Per
box
Product Description
A flame retardant woven (threaded) polyester sleeving that is resistant to cuts
and abrasion, and contains a combustion inhibitor allowing it to achieve a UL
and CSA flame resistance rating of VW-1. Contains white tracer thread for
easy identification.
Short Description
Braided Sleeving, Expandable, Flame Retardant, .75" Dia, PET, Black, 1300
ft/reel
Global Part Name
BSPFR340-PET-BK
Length L (Imperial)
1300.0
Length L (Metric)
396.24
Bundle Diameter Min (Imperial)
0.5
Bundle Diameter Min (Metric)
12.7
Bundle Diameter Max (Imperial)
1.25
Bundle Diameter Max (Metric)
31.75
Diameter D (imperial)
0.75
Diameter D (metric)
19.05
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
19.05
Material
Polyester (PET)
Material Shortcut
PET
Flammability
FMVSS 302 Mil-202 UL VW-1 FAR 25
