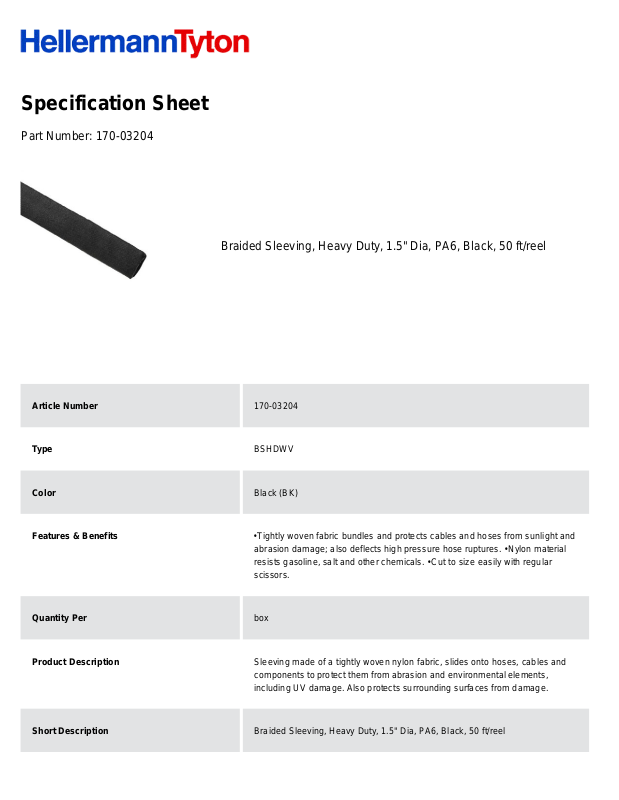

Specification Sheet
Part Number:
170-03204
Braided Sleeving, Heavy Duty, 1.5" Dia, PA6, Black, 50 ft/reel
Article Number
170-03204
Type
BSHDWV
Color
Black (BK)
Features & Benefits
•
Tightly woven fabric bundles and protects cables and hoses from sunlight and
abrasion damage; also deflects high pressure hose ruptures. •
Nylon material
resists gasoline, salt and other chemicals. •
Cut to size easily with regular
scissors.
Quantity Per
box
Product Description
Sleeving made of a tightly woven nylon fabric, slides onto hoses, cables and
components to protect them from abrasion and environmental elements,
including UV damage. Also protects surrounding surfaces from damage.
Short Description
Braided Sleeving, Heavy Duty, 1.5" Dia, PA6, Black, 50 ft/reel
Global Part Name
BSHDWV-PA6-BK
Length L (Imperial)
50.0
Length L (Metric)
15.24
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
1.5
Bundle Diameter Max (Metric)
38.1
Diameter D (imperial)
1.59
Diameter D (metric)
40.39
Nominal Diameter (Imperial)
1-1/2
Nominal Diameter (Metric)
38.1
Wall Thickness WT (Imperial)
.045
Wall Thickness WT (Metric)
1.14
Material
Polyamide 6 (PA6)
Material Shortcut
PA6
