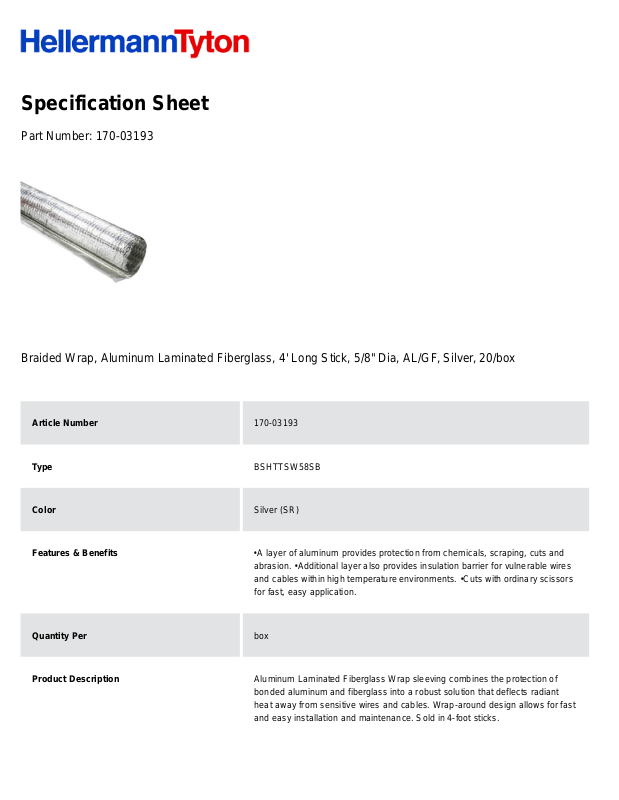

Specification Sheet
Part Number:
170-03193
Braided Wrap, Aluminum Laminated Fiberglass, 4' Long Stick, 5/8" Dia, AL/GF, Silver, 20/box
Article Number
170-03193
Type
BSHTTSW58SB
Color
Silver (SR)
Features & Benefits
•
A layer of aluminum provides protection from chemicals, scraping, cuts and
abrasion. •
Additional layer also provides insulation barrier for vulnerable wires
and cables within high temperature environments. •
Cuts with ordinary scissors
for fast, easy application.
Quantity Per
box
Product Description
Aluminum Laminated Fiberglass Wrap sleeving combines the protection of
bonded aluminum and fiberglass into a robust solution that deflects radiant
heat away from sensitive wires and cables. Wrap-around design allows for fast
and easy installation and maintenance. Sold in 4-foot sticks.
Short Description
Braided Wrap, Aluminum Laminated Fiberglass, 4' Long Stick, 5/8" Dia, AL/GF,
Silver, 20/box
Global Part Name
BSHTTSW58SB-GF-AL-ML
Length L (Imperial)
4.0
Length L (Metric)
1.22
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
0.50
Bundle Diameter Max (Metric)
12.7
Diameter D (imperial)
0.63
Diameter D (metric)
16.0
Nominal Diameter (Imperial)
5/8
Nominal Diameter (Metric)
16.00
Wall Thickness WT (Imperial)
0.042
Wall Thickness WT (Metric)
1.06
Material
Glass fiber with aluminium foil (GF-AL)
