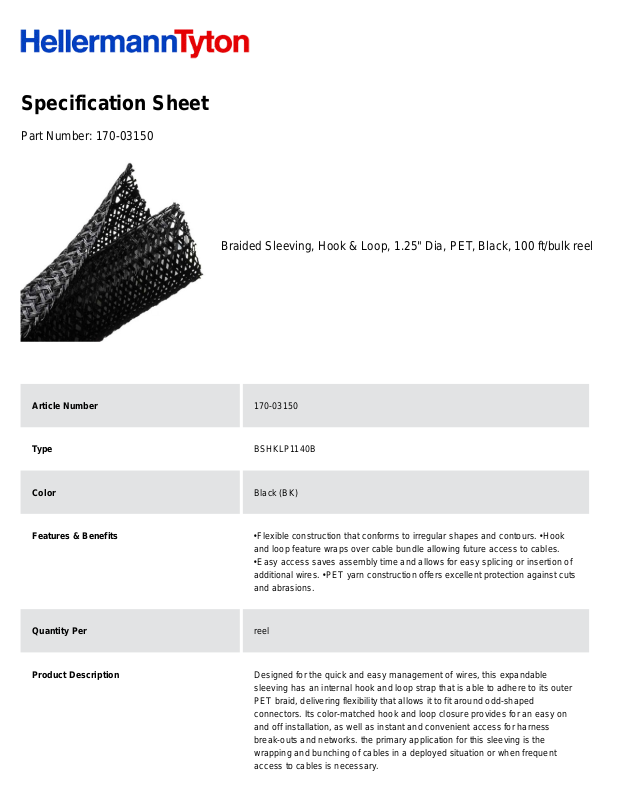

Specification Sheet
Part Number:
170-03150
Braided Sleeving, Hook & Loop, 1.25" Dia, PET, Black, 100 ft/bulk reel
Article Number
170-03150
Type
BSHKLP1140B
Color
Black (BK)
Features & Benefits
•
Flexible construction that conforms to irregular shapes and contours. •
Hook
and loop feature wraps over cable bundle allowing future access to cables.
•
Easy access saves assembly time and allows for easy splicing or insertion of
additional wires. •
PET yarn construction offers excellent protection against cuts
and abrasions.
Quantity Per
reel
Product Description
Designed for the quick and easy management of wires, this expandable
sleeving has an internal hook and loop strap that is able to adhere to its outer
PET braid, delivering flexibility that allows it to fit around odd-shaped
connectors. Its color-matched hook and loop closure provides for an easy on
and off installation, as well as instant and convenient access for harness
break-outs and networks. the primary application for this sleeving is the
wrapping and bunching of cables in a deployed situation or when frequent
access to cables is necessary.
Short Description
Braided Sleeving, Hook & Loop, 1.25" Dia, PET, Black, 100 ft/bulk reel
Global Part Name
BSHKLP1140B-PET-BK
Length L (Imperial)
100.0
Length L (Metric)
30.48
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
1.25
Bundle Diameter Max (Metric)
31.8
Diameter D (imperial)
1.25
Diameter D (metric)
31.8
Nominal Diameter (Imperial)
1-1/4
Nominal Diameter (Metric)
31.8
Wall Thickness WT (Imperial)
0.025
Wall Thickness WT (Metric)
0.635
Material
Polyester (PET)
