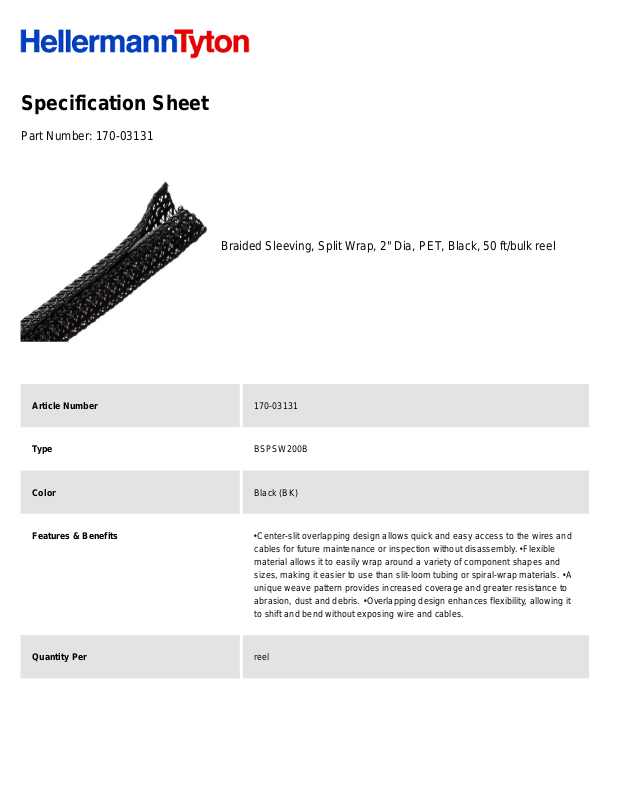

Specification Sheet
Part Number:
170-03131
Braided Sleeving, Split Wrap, 2" Dia, PET, Black, 50 ft/bulk reel
Article Number
170-03131
Type
BSPSW200B
Color
Black (BK)
Features & Benefits
•
Center-slit overlapping design allows quick and easy access to the wires and
cables for future maintenance or inspection without disassembly. •
Flexible
material allows it to easily wrap around a variety of component shapes and
sizes, making it easier to use than slit-loom tubing or spiral-wrap materials. •
A
unique weave pattern provides increased coverage and greater resistance to
abrasion, dust and debris. •
Overlapping design enhances flexibility, allowing it
to shift and bend without exposing wire and cables.
Quantity Per
reel
Product Description
Split Wrap Woven Sleeving is a self-closing sleeving manufactured from a
unique blend of monofilament and multifilament polyester fibers that resemble
a tightly woven material. The wrap around design provides increased flexibility,
better coverage and greater resistance from abrasion for wires, cables and
assemblies. Can also be used to reduce noise in applications that involve
movement, while protecting sensitive electronics and communication systems
from dust and debris.
Short Description
Braided Sleeving, Split Wrap, 2" Dia, PET, Black, 50 ft/bulk reel
Global Part Name
BSPSW200B-PET-BK
Length L (Imperial)
50.0
Length L (Metric)
15.2
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.8
Diameter D (imperial)
2.0
Diameter D (metric)
50.8
Nominal Diameter (Imperial)
2
Nominal Diameter (Metric)
50.8
Wall Thickness WT (Imperial)
0.038
Wall Thickness WT (Metric)
0.97
