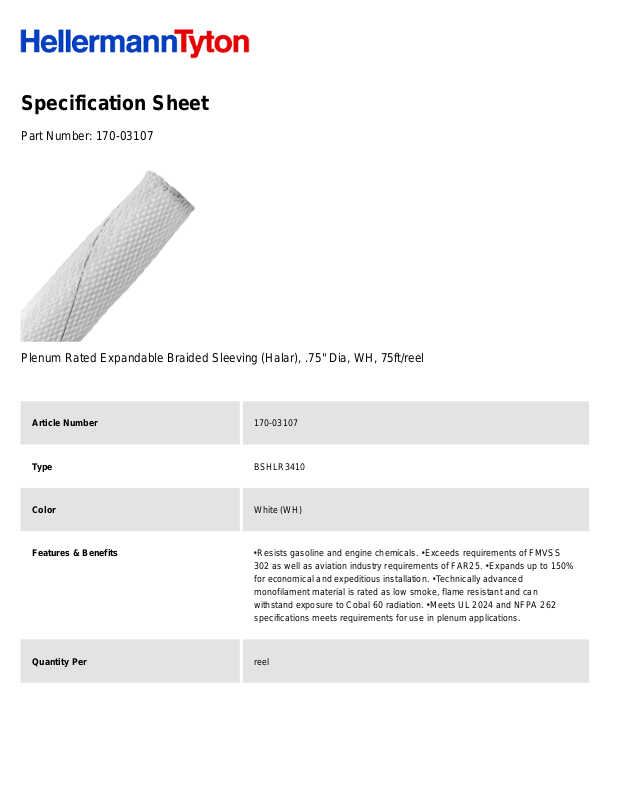

Specification Sheet
Part Number:
170-03107
Plenum Rated Expandable Braided Sleeving (Halar), .75" Dia, WH, 75ft/reel
Article Number
170-03107
Type
BSHLR3410
Color
White (WH)
Features & Benefits
•
Resists gasoline and engine chemicals. •
Exceeds requirements of FMVSS
302 as well as aviation industry requirements of FAR25. •
Expands up to 150%
for economical and expeditious installation. •
Technically advanced
monofilament material is rated as low smoke, flame resistant and can
withstand exposure to Cobal 60 radiation. •
Meets UL 2024 and NFPA 262
specifications meets requirements for use in plenum applications.
Quantity Per
reel
Product Description
Halar self-extinguishing sleeving is used where flammability, high temperature
endurance and low outgassing are the primary concern. This sleeving is made
from strands of high temperature, flame resistant Halar monofilaments that are
able to resist a wide range of corrosive chemicals and organic solvents. Its low
flame spread and smoke generation properties make it the perfect option for
use in technologically advanced applications, such as those in the automotive,
aerospace and vital military markets.
Short Description
Plenum Rated Expandable Braided Sleeving (Halar), .75" Dia, WH, 75ft/reel
Global Part Name
BSHLR3410-PA66E/CTFE-WH
Length L (Imperial)
75.0
Length L (Metric)
22.9
Bundle Diameter Min (Imperial)
0.5
Bundle Diameter Min (Metric)
12.7
Bundle Diameter Max (Imperial)
1.25
Bundle Diameter Max (Metric)
31.8
Diameter D (imperial)
0.75
Diameter D (metric)
19.1
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
19.1
