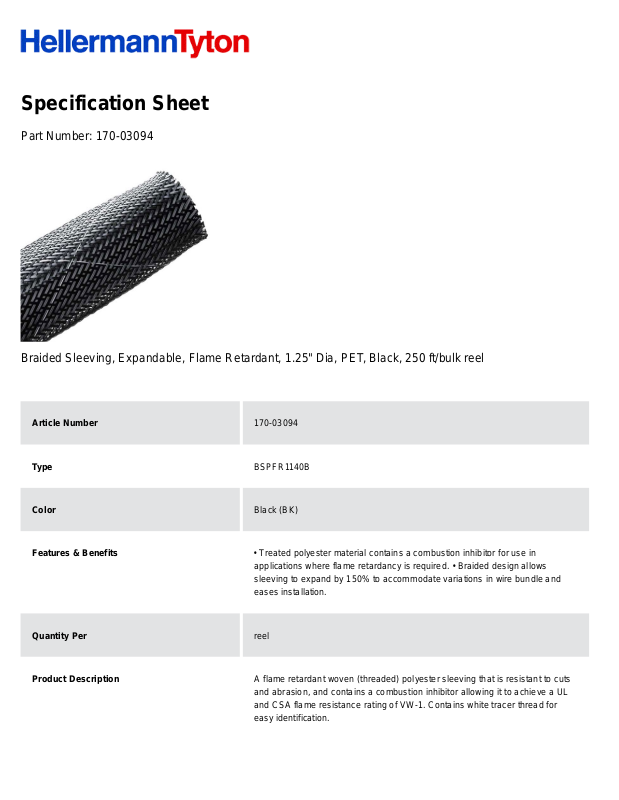

Specification Sheet
Part Number:
170-03094
Braided Sleeving, Expandable, Flame Retardant, 1.25" Dia, PET, Black, 250 ft/bulk reel
Article Number
170-03094
Type
BSPFR1140B
Color
Black (BK)
Features & Benefits
• Treated polyester material contains a combustion inhibitor for use in
applications where flame retardancy is required. • Braided design allows
sleeving to expand by 150% to accommodate variations in wire bundle and
eases installation.
Quantity Per
reel
Product Description
A flame retardant woven (threaded) polyester sleeving that is resistant to cuts
and abrasion, and contains a combustion inhibitor allowing it to achieve a UL
and CSA flame resistance rating of VW-1. Contains white tracer thread for
easy identification.
Short Description
Braided Sleeving, Expandable, Flame Retardant, 1.25" Dia, PET, Black, 250
ft/bulk reel
Global Part Name
BSPFR1140B-PET-BK
Length L (Imperial)
250.0
Length L (Metric)
76.2
Bundle Diameter Min (Imperial)
0.75
Bundle Diameter Min (Metric)
19.1
Bundle Diameter Max (Imperial)
1.75
Bundle Diameter Max (Metric)
44.5
Diameter D (imperial)
1.25
Diameter D (metric)
31.8
Nominal Diameter (Imperial)
1-1/4
Nominal Diameter (Metric)
31.8
Material
Polyester (PET)
Material Shortcut
PET
Flammability
UL VW-1 Mil-202 FMVSS 302 FAR 25
Halogen free
Yes
Operating Temperature (Metric)
-94°F to +257°F (-70°C to +125°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL 94 VW-1
UL Recognized (US)
Yes
Package Quantity(Imperial)
250
Package Quantity (Metric)
76.20
Customs Number
5808100000
Weight (Metric)
1.8
Weight (Imperial)
4.0
