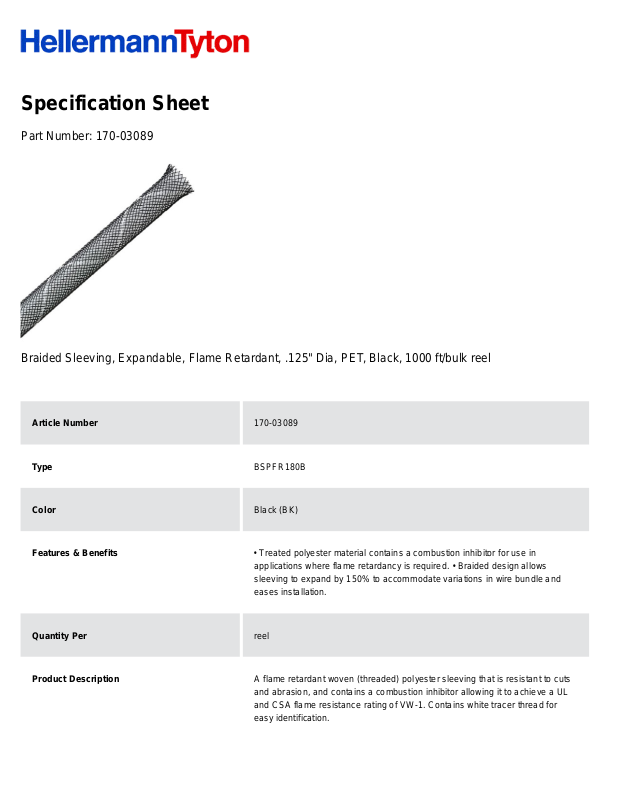

Specification Sheet
Part Number:
170-03089
Braided Sleeving, Expandable, Flame Retardant, .125" Dia, PET, Black, 1000 ft/bulk reel
Article Number
170-03089
Type
BSPFR180B
Color
Black (BK)
Features & Benefits
• Treated polyester material contains a combustion inhibitor for use in
applications where flame retardancy is required. • Braided design allows
sleeving to expand by 150% to accommodate variations in wire bundle and
eases installation.
Quantity Per
reel
Product Description
A flame retardant woven (threaded) polyester sleeving that is resistant to cuts
and abrasion, and contains a combustion inhibitor allowing it to achieve a UL
and CSA flame resistance rating of VW-1. Contains white tracer thread for
easy identification.
Short Description
Braided Sleeving, Expandable, Flame Retardant, .125" Dia, PET, Black, 1000
ft/bulk reel
Global Part Name
BSPFR180B-PET-BK
Length L (Imperial)
1000.0
Length L (Metric)
304.8
Bundle Diameter Min (Imperial)
0.094
Bundle Diameter Min (Metric)
2.4
Bundle Diameter Max (Imperial)
0.25
Bundle Diameter Max (Metric)
6.4
Diameter D (imperial)
0.13
Diameter D (metric)
3.2
Nominal Diameter (Imperial)
1/8
Nominal Diameter (Metric)
3.2
Material
Polyester (PET)
Material Shortcut
PET
Flammability
Mil-202 FMVSS 302 UL VW-1 FAR 25
Halogen free
Yes
Operating Temperature (Metric)
-94°F to +257°F (-70°C to +125°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL 94 VW-1
UL Recognized (US)
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
304.80
Customs Number
5808100000
Weight (Metric)
0.73
Weight (Imperial)
1.6
