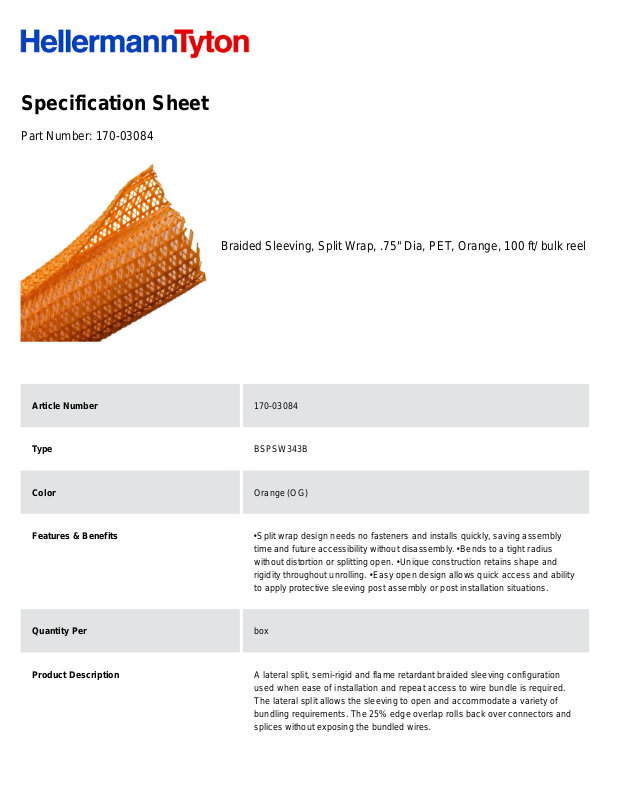

Specification Sheet
Part Number:
170-03084
Braided Sleeving, Split Wrap, .75" Dia, PET, Orange, 100 ft/ bulk reel
Article Number
170-03084
Type
BSPSW343B
Color
Orange (OG)
Features & Benefits
•
Split wrap design needs no fasteners and installs quickly, saving assembly
time and future accessibility without disassembly. •
Bends to a tight radius
without distortion or splitting open. •
Unique construction retains shape and
rigidity throughout unrolling. •
Easy open design allows quick access and ability
to apply protective sleeving post assembly or post installation situations.
Quantity Per
box
Product Description
A lateral split, semi-rigid and flame retardant braided sleeving configuration
used when ease of installation and repeat access to wire bundle is required.
The lateral split allows the sleeving to open and accommodate a variety of
bundling requirements. The 25% edge overlap rolls back over connectors and
splices without exposing the bundled wires.
Short Description
Braided Sleeving, Split Wrap, .75" Dia, PET, Orange, 100 ft/ bulk reel
Global Part Name
BSPSW343B-PET-OG
Length L (Imperial)
100.0
Length L (Metric)
30.48
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
0.75
Bundle Diameter Max (Metric)
19.1
Diameter D (imperial)
0.75
Diameter D (metric)
19.1
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
19.1
Wall Thickness WT (Imperial)
0.025
Wall Thickness WT (Metric)
0.64
Material
Polyester (PET)
Material Shortcut
PET
Flammability
UL 94 V0
Halogen free
Yes
Operating Temperature (Metric)
-94°F to +257°F (-70°C to +125°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
UL Recognized (US)
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
30.48
Customs Number
5808100000
Weight (Metric)
0.73
Weight (Imperial)
1.6
