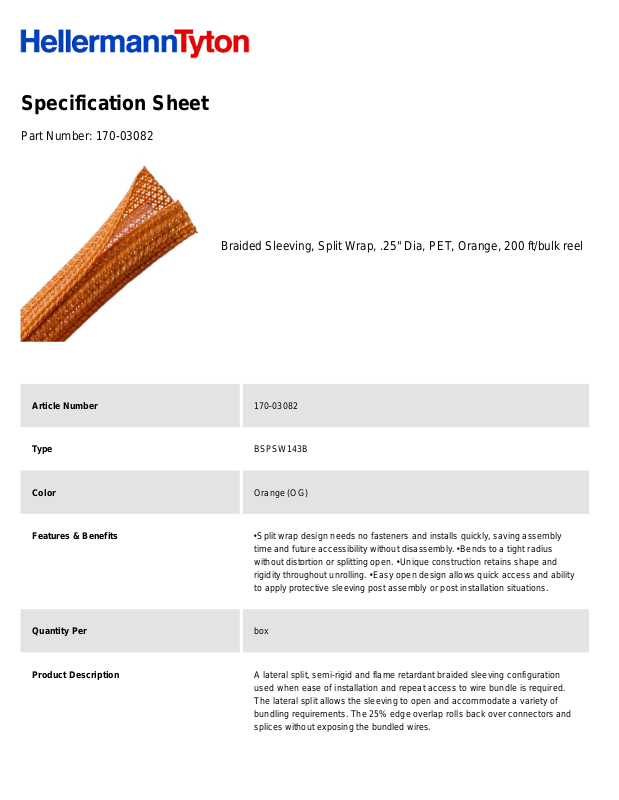

Specification Sheet
Part Number:
170-03082
Braided Sleeving, Split Wrap, .25" Dia, PET, Orange, 200 ft/bulk reel
Article Number
170-03082
Type
BSPSW143B
Color
Orange (OG)
Features & Benefits
•
Split wrap design needs no fasteners and installs quickly, saving assembly
time and future accessibility without disassembly. •
Bends to a tight radius
without distortion or splitting open. •
Unique construction retains shape and
rigidity throughout unrolling. •
Easy open design allows quick access and ability
to apply protective sleeving post assembly or post installation situations.
Quantity Per
box
Product Description
A lateral split, semi-rigid and flame retardant braided sleeving configuration
used when ease of installation and repeat access to wire bundle is required.
The lateral split allows the sleeving to open and accommodate a variety of
bundling requirements. The 25% edge overlap rolls back over connectors and
splices without exposing the bundled wires.
Short Description
Braided Sleeving, Split Wrap, .25" Dia, PET, Orange, 200 ft/bulk reel
Global Part Name
BSPSW143B-PET-OG
Length L (Imperial)
200.0
Length L (Metric)
61.0
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
0.25
Bundle Diameter Max (Metric)
6.4
Diameter D (imperial)
0.25
Diameter D (metric)
6.4
Nominal Diameter (Imperial)
1/4
Nominal Diameter (Metric)
6.4
Wall Thickness WT (Imperial)
0.025
Wall Thickness WT (Metric)
0.64
Material
Polyester (PET)
