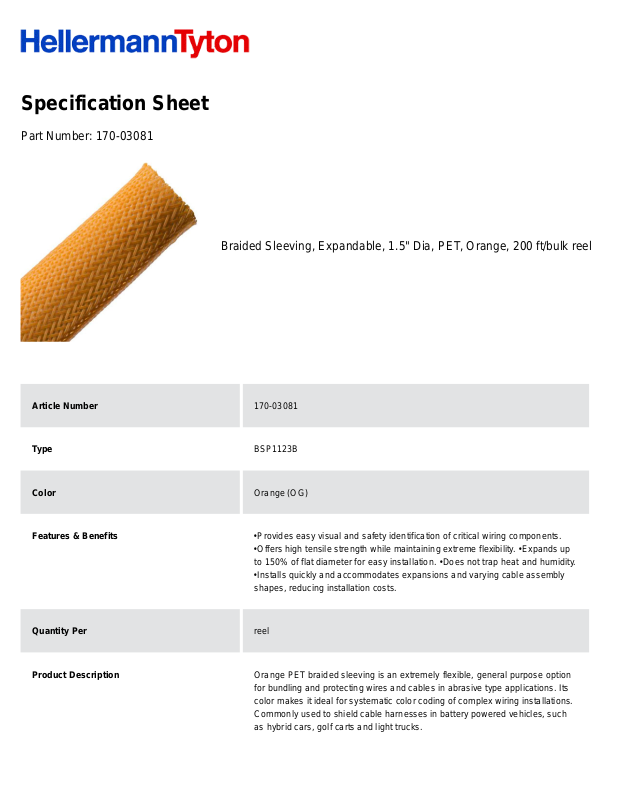

Specification Sheet
Part Number:
170-03081
Braided Sleeving, Expandable, 1.5" Dia, PET, Orange, 200 ft/bulk reel
Article Number
170-03081
Type
BSP1123B
Color
Orange (OG)
Features & Benefits
•
Provides easy visual and safety identification of critical wiring components.
•
Offers high tensile strength while maintaining extreme flexibility. •
Expands up
to 150% of flat diameter for easy installation. •
Does not trap heat and humidity.
•
Installs quickly and accommodates expansions and varying cable assembly
shapes, reducing installation costs.
Quantity Per
reel
Product Description
Orange PET braided sleeving is an extremely flexible, general purpose option
for bundling and protecting wires and cables in abrasive type applications. Its
color makes it ideal for systematic color coding of complex wiring installations.
Commonly used to shield cable harnesses in battery powered vehicles, such
as hybrid cars, golf carts and light trucks.
Short Description
Braided Sleeving, Expandable, 1.5" Dia, PET, Orange, 200 ft/bulk reel
Global Part Name
BSP1123B-PET-OG
Length L (Imperial)
200.0
Length L (Metric)
61.0
Bundle Diameter Min (Imperial)
1.5
Bundle Diameter Min (Metric)
38.1
Bundle Diameter Max (Imperial)
3.5
Bundle Diameter Max (Metric)
88.9
Diameter D (imperial)
1.50
Diameter D (metric)
38.1
Nominal Diameter (Imperial)
1-1/2
Nominal Diameter (Metric)
38.1
Material
Polyester (PET)
Material Shortcut
PET
Flammability
FAR 25 UL 94 V0 FMVSS 302
