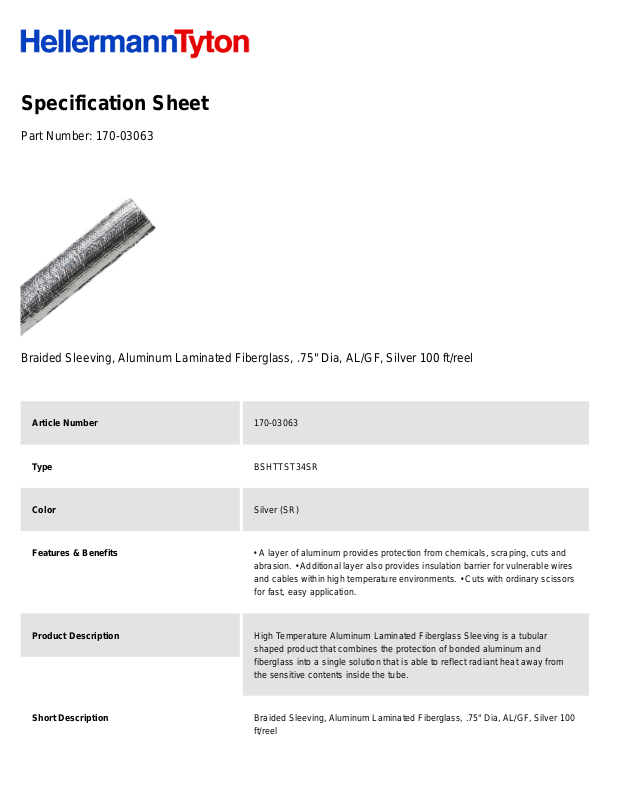

Specification Sheet
Part Number:
170-03063
Braided Sleeving, Aluminum Laminated Fiberglass, .75" Dia, AL/GF, Silver 100 ft/reel
Article Number
170-03063
Type
BSHTTST34SR
Color
Silver (SR)
Features & Benefits
• A layer of aluminum provides protection from chemicals, scraping, cuts and
abrasion. • Additional layer also provides insulation barrier for vulnerable wires
and cables within high temperature environments. • Cuts with ordinary scissors
for fast, easy application.
Product Description
High Temperature Aluminum Laminated Fiberglass Sleeving is a tubular
shaped product that combines the protection of bonded aluminum and
fiberglass into a single solution that is able to reflect radiant heat away from
the sensitive contents inside the tube.
Short Description
Braided Sleeving, Aluminum Laminated Fiberglass, .75" Dia, AL/GF, Silver 100
ft/reel
Global Part Name
BSHTTST34SR-AL/GF-ML
Length L (Imperial)
100.0
Length L (Metric)
30.48
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
0.687
Bundle Diameter Max (Metric)
17.5
Diameter D (imperial)
0.75
Diameter D (metric)
19.1
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
19.1
Wall Thickness WT (Imperial)
0.025
Wall Thickness WT (Metric)
0.64
Material
Aluminum (AL) Glass Fiber (GF)
Material Shortcut
AL GF
