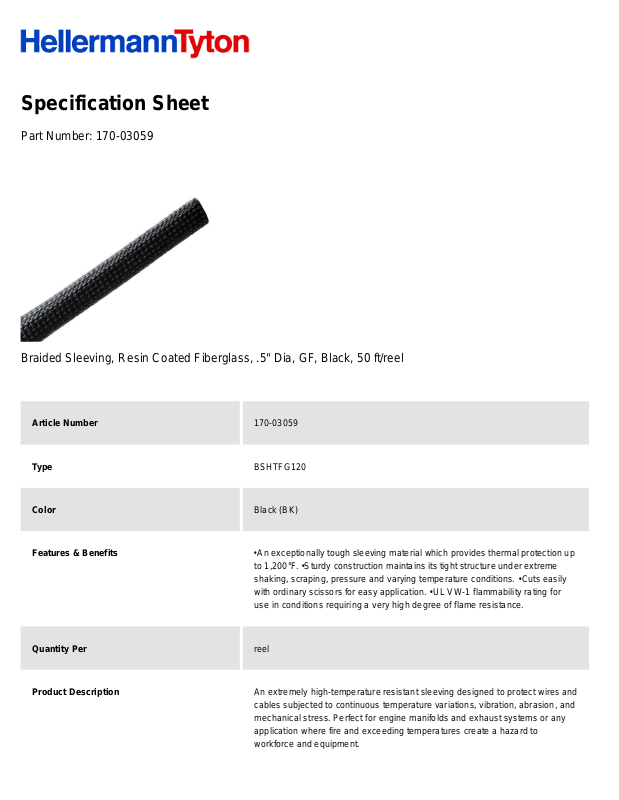

Specification Sheet
Part Number:
170-03059
Braided Sleeving, Resin Coated Fiberglass, .5" Dia, GF, Black, 50 ft/reel
Article Number
170-03059
Type
BSHTFG120
Color
Black (BK)
Features & Benefits
•
An exceptionally tough sleeving material which provides thermal protection up
to 1,200°F. •
Sturdy construction maintains its tight structure under extreme
shaking, scraping, pressure and varying temperature conditions. •
Cuts easily
with ordinary scissors for easy application. •
UL VW-1 flammability rating for
use in conditions requiring a very high degree of flame resistance.
Quantity Per
reel
Product Description
An extremely high-temperature resistant sleeving designed to protect wires and
cables subjected to continuous temperature variations, vibration, abrasion, and
mechanical stress. Perfect for engine manifolds and exhaust systems or any
application where fire and exceeding temperatures create a hazard to
workforce and equipment.
Short Description
Braided Sleeving, Resin Coated Fiberglass, .5" Dia, GF, Black, 50 ft/reel
Global Part Name
BSHTFG120-GF-BK
Length L (Imperial)
50.0
Length L (Metric)
15.2
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
0.75
Bundle Diameter Max (Metric)
19.1
Diameter D (imperial)
0.50
Diameter D (metric)
12.7
Nominal Diameter (Imperial)
1/2
Nominal Diameter (Metric)
12.7
Wall Thickness WT (Imperial)
0.046
Wall Thickness WT (Metric)
1.67
Material
Glass Fiber (GF)
