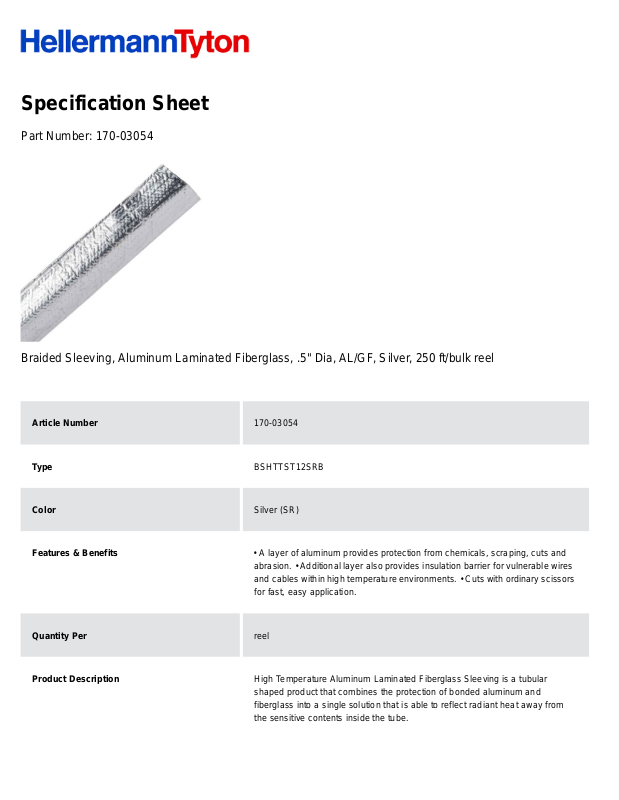

Specification Sheet
Part Number:
170-03054
Braided Sleeving, Aluminum Laminated Fiberglass, .5" Dia, AL/GF, Silver, 250 ft/bulk reel
Article Number
170-03054
Type
BSHTTST12SRB
Color
Silver (SR)
Features & Benefits
• A layer of aluminum provides protection from chemicals, scraping, cuts and
abrasion. • Additional layer also provides insulation barrier for vulnerable wires
and cables within high temperature environments. • Cuts with ordinary scissors
for fast, easy application.
Quantity Per
reel
Product Description
High Temperature Aluminum Laminated Fiberglass Sleeving is a tubular
shaped product that combines the protection of bonded aluminum and
fiberglass into a single solution that is able to reflect radiant heat away from
the sensitive contents inside the tube.
Short Description
Braided Sleeving, Aluminum Laminated Fiberglass, .5" Dia, AL/GF, Silver, 250
ft/bulk reel
Global Part Name
BSHTTST12SRB-AL/GF-ML
Length L (Imperial)
250.0
Length L (Metric)
76.2
Bundle Diameter Min (Imperial)
0.1
Bundle Diameter Min (Metric)
2.54
Bundle Diameter Max (Imperial)
0.437
Bundle Diameter Max (Metric)
11.1
Diameter D (imperial)
0.5
Diameter D (metric)
12.7
Nominal Diameter (Imperial)
1/2
Nominal Diameter (Metric)
12.7
Wall Thickness WT (Imperial)
0.025
Wall Thickness WT (Metric)
0.64
Material
Glass Fiber (GF) Aluminum (AL)
Material Shortcut
GF AL
Flammability
Non-Flammable
Halogen free
Yes
Operating Temperature (Metric)
-76°F to +491°F (-60°C to +255°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
250
Package Quantity (Metric)
76.20
Customs Number
7019905050
Weight (Metric)
2.90
Weight (Imperial)
6.375
