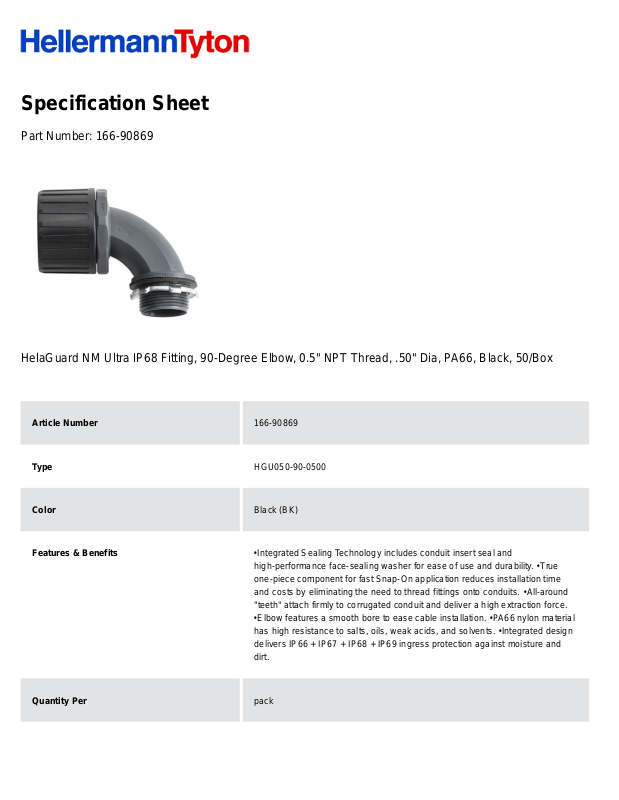

Specification Sheet
Part Number:
166-90869
HelaGuard NM Ultra IP68 Fitting, 90-Degree Elbow, 0.5" NPT Thread, .50" Dia, PA66, Black, 50/Box
Article Number
166-90869
Type
HGU050-90-0500
Color
Black (BK)
Features & Benefits
•
Integrated Sealing Technology includes conduit insert seal and
high-performance face-sealing washer for ease of use and durability. •
True
one-piece component for fast Snap-On application reduces installation time
and costs by eliminating the need to thread fittings onto conduits. •
All-around
"teeth" attach firmly to corrugated conduit and deliver a high extraction force.
•
Elbow features a smooth bore to ease cable installation. •
PA66 nylon material
has high resistance to salts, oils, weak acids, and solvents. •
Integrated design
delivers IP66 + IP67 + IP68 + IP69 ingress protection against moisture and
dirt.
Quantity Per
pack
Product Description
Elbow Snap-On style Metric or NPT threaded nylon fittings provide a true
one-piece component solution; seals and locknuts are included. Durable nylon
materials deliver high chemical resistance against salts, oils, weak acids, and
solvents. Designed for easy removal with a small screwdriver. UL-Listed fittings
deliver IP66 + IP67 + IP68 + IP69 ingress protection.
Short Description
HelaGuard NM Ultra IP68 Fitting, 90-Degree Elbow, 0.5" NPT Thread, .50"
Dia, PA66, Black, 50/Box
Global Part Name
HGU050-90-0500-PA66-BK
Length L (Imperial)
2.09
Length L (Metric)
53.0
Variant
90° Elbow
Outside Diameter OD(Imperial)
1.26
Outside Diameter OD(metric)
32.0
Nominal Diameter (Imperial)
1/2
Nominal Diameter (Metric)
21
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
Self-Extinguishing
