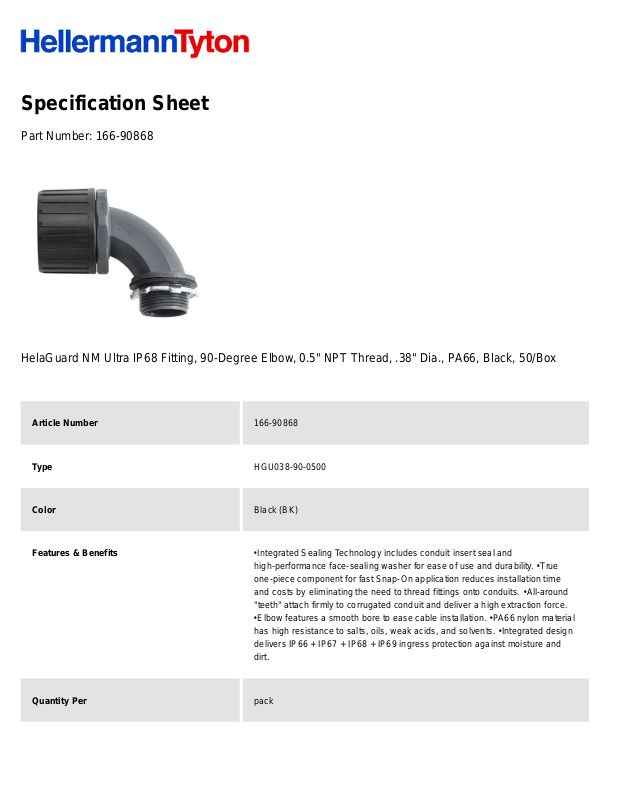

Specification Sheet
Part Number:
166-90868
HelaGuard NM Ultra IP68 Fitting, 90-Degree Elbow, 0.5" NPT Thread, .38" Dia., PA66, Black, 50/Box
Article Number
166-90868
Type
HGU038-90-0500
Color
Black (BK)
Features & Benefits
•
Integrated Sealing Technology includes conduit insert seal and
high-performance face-sealing washer for ease of use and durability. •
True
one-piece component for fast Snap-On application reduces installation time
and costs by eliminating the need to thread fittings onto conduits. •
All-around
"teeth" attach firmly to corrugated conduit and deliver a high extraction force.
•
Elbow features a smooth bore to ease cable installation. •
PA66 nylon material
has high resistance to salts, oils, weak acids, and solvents. •
Integrated design
delivers IP66 + IP67 + IP68 + IP69 ingress protection against moisture and
dirt.
Quantity Per
pack
Product Description
Elbow Snap-On style Metric or NPT threaded nylon fittings provide a true
one-piece component solution; seals and locknuts are included. Durable nylon
materials deliver high chemical resistance against salts, oils, weak acids, and
solvents. Designed for easy removal with a small screwdriver. UL-Listed fittings
deliver IP66 + IP67 + IP68 + IP69 ingress protection.
Short Description
HelaGuard NM Ultra IP68 Fitting, 90-Degree Elbow, 0.5" NPT Thread, .38"
Dia., PA66, Black, 50/Box
Global Part Name
HGU038-90-0500-PA66-BK
Length L (Imperial)
2.01
Length L (Metric)
51.0
Variant
90° Elbow
Outside Diameter OD(Imperial)
1.14
Outside Diameter OD(metric)
29.0
Nominal Diameter (Imperial)
3/8
Nominal Diameter (Metric)
16
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
Self-Extinguishing
