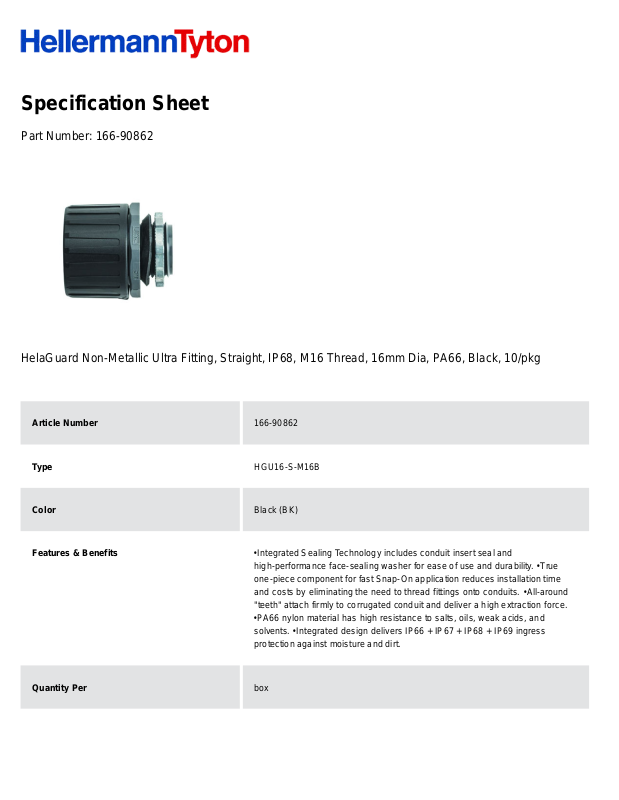

Specification Sheet
Part Number:
166-90862
HelaGuard Non-Metallic Ultra Fitting, Straight, IP68, M16 Thread, 16mm Dia, PA66, Black, 10/pkg
Article Number
166-90862
Type
HGU16-S-M16B
Color
Black (BK)
Features & Benefits
•
Integrated Sealing Technology includes conduit insert seal and
high-performance face-sealing washer for ease of use and durability. •
True
one-piece component for fast Snap-On application reduces installation time
and costs by eliminating the need to thread fittings onto conduits. •
All-around
"teeth" attach firmly to corrugated conduit and deliver a high extraction force.
•
PA66 nylon material has high resistance to salts, oils, weak acids, and
solvents. •
Integrated design delivers IP66 + IP67 + IP68 + IP69 ingress
protection against moisture and dirt.
Quantity Per
box
Product Description
Straight Snap-On style Metric or NPT threaded nylon fittings provide a true
one-piece component solution; seals and locknuts are included. Durable nylon
materials deliver high chemical resistance against salts, oils, weak acids, and
solvents. Designed for easy removal with a small screwdriver. UL-Listed fittings
deliver IP66 + IP67 + IP68 + IP69 ingress protection.
Short Description
HelaGuard Non-Metallic Ultra Fitting, Straight, IP68, M16 Thread, 16mm Dia,
PA66, Black, 10/pkg
Global Part Name
HGU16-S-M16B-PA66-BK
Length L (Imperial)
1.61
Length L (Metric)
41
Variant
Straight
Outside Diameter OD(Imperial)
1.10
Outside Diameter OD(metric)
28.0
Nominal Diameter (Imperial)
3/8
Nominal Diameter (Metric)
16
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
Self-Extinguishing
