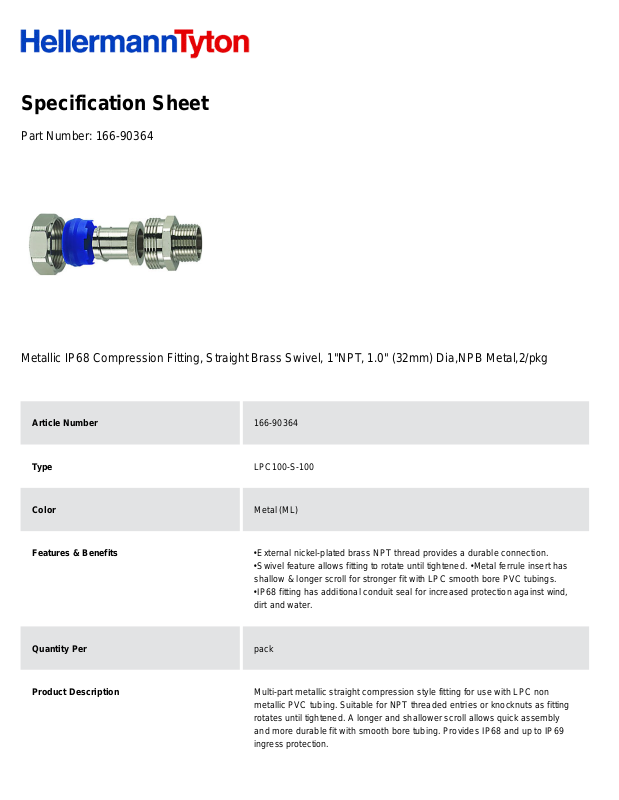

Page 1
Specification Sheet
Part Number:
166-90364
Metallic IP68 Compression Fitting, Straight Brass Swivel, 1"NPT, 1.0" (32mm) Dia,NPB Metal,2/pkg
Article Number
166-90364
Type
LPC100-S-100
Color
Metal (ML)
Features & Benefits
•
External nickel-plated brass NPT thread provides a durable connection.
•
Swivel feature allows fitting to rotate until tightened. •
Metal ferrule insert has
shallow & longer scroll for stronger fit with LPC smooth bore PVC tubings.
•
IP68 fitting has additional conduit seal for increased protection against wind,
dirt and water.
Quantity Per
pack
Product Description
Multi-part metallic straight compression style fitting for use with LPC non
metallic PVC tubing. Suitable for NPT threaded entries or knocknuts as fitting
rotates until tightened. A longer and shallower scroll allows quick assembly
and more durable fit with smooth bore tubing. Provides IP68 and up to IP69
ingress protection.
Page 2
Short Description
Metallic IP68 Compression Fitting, Straight Brass Swivel, 1"NPT, 1.0" (32mm)
Dia,NPB Metal,2/pkg
Global Part Name
LPC100-S-100-NPB-ML
Length L (Imperial)
1.80
Length L (Metric)
48.5
Variant
Straight
Height H (Imperial)
1.65
Height H (Metric)
42.0
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
32
Material
Nickel Plated Brass (NPB)
Material Shortcut
NPB
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Page 3
Package Quantity(Imperial)
2
Package Quantity (Metric)
2
Customs Number
7412200000
