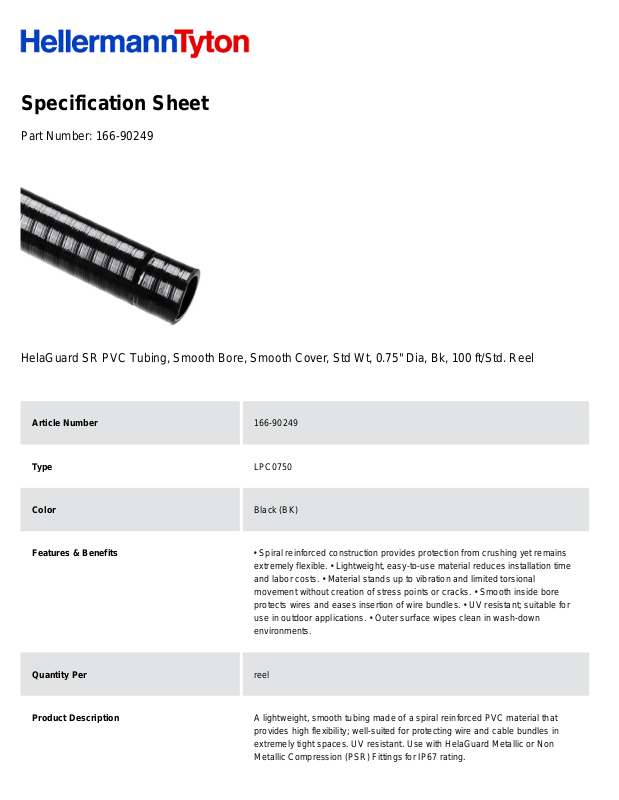

Specification Sheet
Part Number:
166-90249
HelaGuard SR PVC Tubing, Smooth Bore, Smooth Cover, Std Wt, 0.75" Dia, Bk, 100 ft/Std. Reel
Article Number
166-90249
Type
LPC0750
Color
Black (BK)
Features & Benefits
• Spiral reinforced construction provides protection from crushing yet remains
extremely flexible. • Lightweight, easy-to-use material reduces installation time
and labor costs. • Material stands up to vibration and limited torsional
movement without creation of stress points or cracks. • Smooth inside bore
protects wires and eases insertion of wire bundles. • UV resistant; suitable for
use in outdoor applications. • Outer surface wipes clean in wash-down
environments.
Quantity Per
reel
Product Description
A lightweight, smooth tubing made of a spiral reinforced PVC material that
provides high flexibility; well-suited for protecting wire and cable bundles in
extremely tight spaces. UV resistant. Use with HelaGuard Metallic or Non
Metallic Compression (PSR) Fittings for IP67 rating.
Short Description
HelaGuard SR PVC Tubing, Smooth Bore, Smooth Cover, Std Wt, 0.75" Dia,
Bk, 100 ft/Std. Reel
Global Part Name
LPC0750-PVC-BK
Length L (Imperial)
100.0
Length L (Metric)
30.5
Inner Diameter D (Imperial)
0.83
Inner Diameter D (Metric)
21
Outside Diameter OD(Imperial)
1.04
Outside Diameter OD(metric)
26.4
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
25
Material
Polyvinylchloride (PVC)
Material Shortcut
PVC
Flammability
Self-Extinguishing according to EN IEC 61386-1
Halogen free
No
Operating Temperature (Metric)
+23°F to +158°F (-5°C to +70°C)
