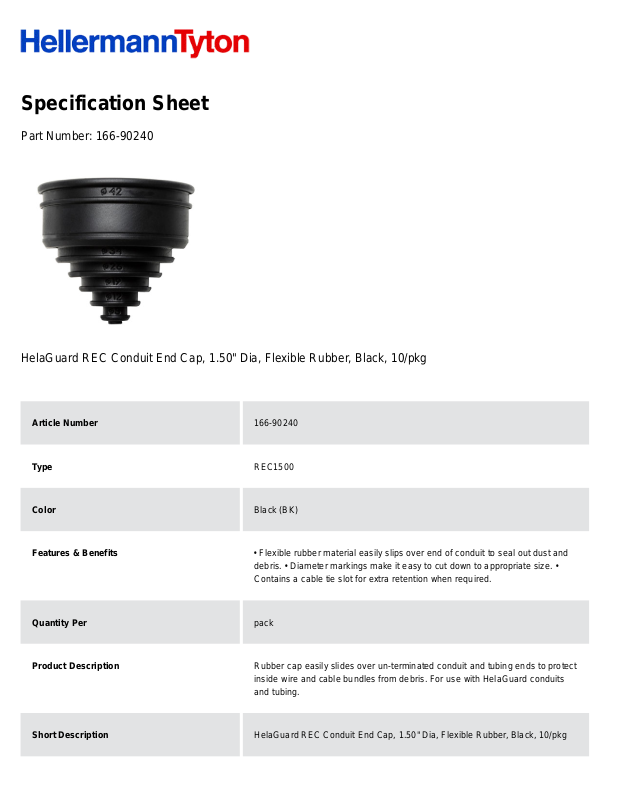

Specification Sheet
Part Number:
166-90240
HelaGuard REC Conduit End Cap, 1.50" Dia, Flexible Rubber, Black, 10/pkg
Article Number
166-90240
Type
REC1500
Color
Black (BK)
Features & Benefits
• Flexible rubber material easily slips over end of conduit to seal out dust and
debris. • Diameter markings make it easy to cut down to appropriate size. •
Contains a cable tie slot for extra retention when required.
Quantity Per
pack
Product Description
Rubber cap easily slides over un-terminated conduit and tubing ends to protect
inside wire and cable bundles from debris. For use with HelaGuard conduits
and tubing.
Short Description
HelaGuard REC Conduit End Cap, 1.50" Dia, Flexible Rubber, Black, 10/pkg
Global Part Name
REC1500-CR-BK
Length L (Imperial)
2.04
Length L (Metric)
51.9
Variant
Endcap
Outside Diameter OD(Imperial)
2.48
Outside Diameter OD(metric)
63.1
Nominal Diameter (Imperial)
2-1/8
Nominal Diameter (Metric)
54
Material
Rubber
Material Shortcut
CR
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +248°F (-50°C to +120°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
10
Package Quantity (Metric)
10
Customs Number
3926909988
