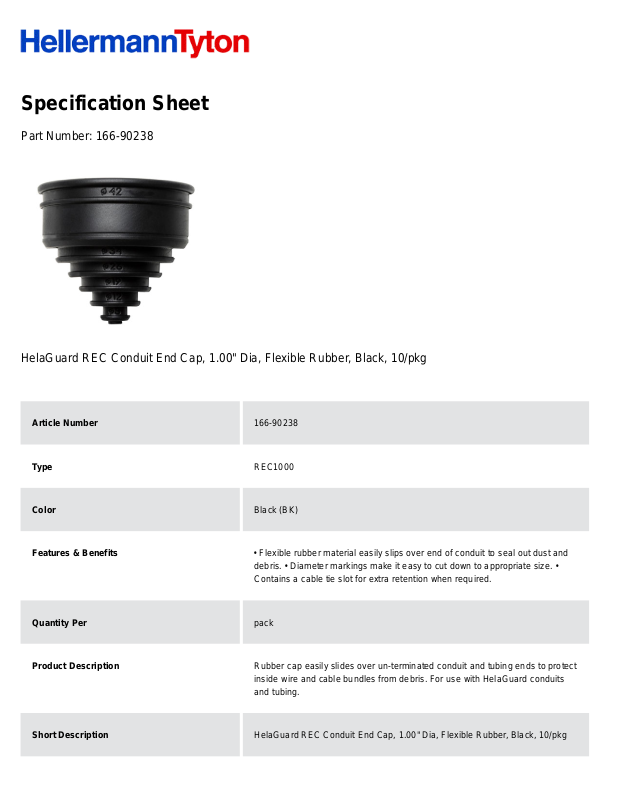

Specification Sheet
Part Number:
166-90238
HelaGuard REC Conduit End Cap, 1.00" Dia, Flexible Rubber, Black, 10/pkg
Article Number
166-90238
Type
REC1000
Color
Black (BK)
Features & Benefits
• Flexible rubber material easily slips over end of conduit to seal out dust and
debris. • Diameter markings make it easy to cut down to appropriate size. •
Contains a cable tie slot for extra retention when required.
Quantity Per
pack
Product Description
Rubber cap easily slides over un-terminated conduit and tubing ends to protect
inside wire and cable bundles from debris. For use with HelaGuard conduits
and tubing.
Short Description
HelaGuard REC Conduit End Cap, 1.00" Dia, Flexible Rubber, Black, 10/pkg
Global Part Name
REC1000-CR-BK
Length L (Imperial)
1.67
Length L (Metric)
42.3
Variant
Endcap
Outside Diameter OD(Imperial)
1.67
Outside Diameter OD(metric)
42.5
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
34
Material
Rubber
Material Shortcut
CR
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +248°F (-50°C to +120°C)
ROHS Complaint
Yes
