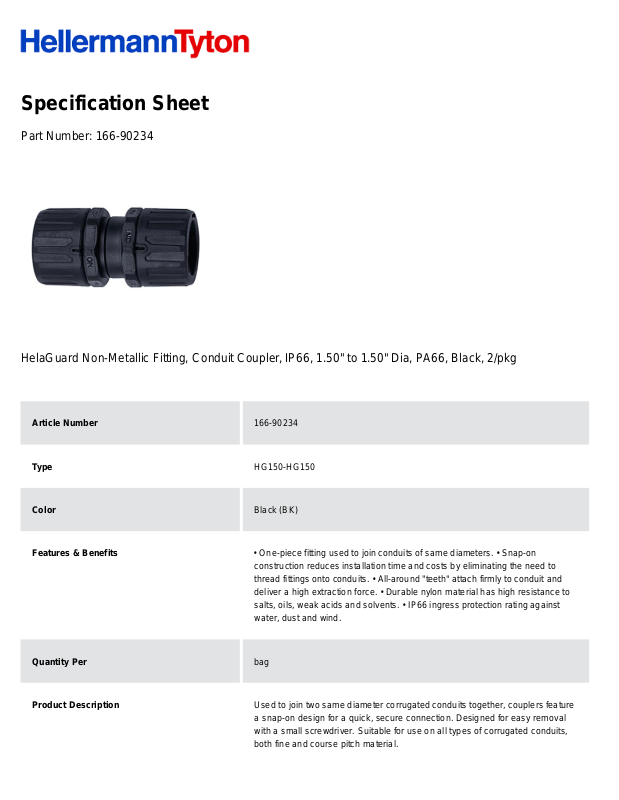

Specification Sheet
Part Number:
166-90234
HelaGuard Non-Metallic Fitting, Conduit Coupler, IP66, 1.50" to 1.50" Dia, PA66, Black, 2/pkg
Article Number
166-90234
Type
HG150-HG150
Color
Black (BK)
Features & Benefits
• One-piece fitting used to join conduits of same diameters. • Snap-on
construction reduces installation time and costs by eliminating the need to
thread fittings onto conduits. • All-around "teeth" attach firmly to conduit and
deliver a high extraction force. • Durable nylon material has high resistance to
salts, oils, weak acids and solvents. • IP66 ingress protection rating against
water, dust and wind.
Quantity Per
bag
Product Description
Used to join two same diameter corrugated conduits together, couplers feature
a snap-on design for a quick, secure connection. Designed for easy removal
with a small screwdriver. Suitable for use on all types of corrugated conduits,
both fine and course pitch material.
Short Description
HelaGuard Non-Metallic Fitting, Conduit Coupler, IP66, 1.50" to 1.50" Dia,
PA66, Black, 2/pkg
Global Part Name
HG150-HG150-PA66-BK
Length L (Imperial)
4.49
Length L (Metric)
114
Variant
Coupler
Outside Diameter OD(Imperial)
2.99
Outside Diameter OD(metric)
76
Nominal Diameter (Imperial)
2-1/8
Nominal Diameter (Metric)
54
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
ROHS Complaint
Yes
