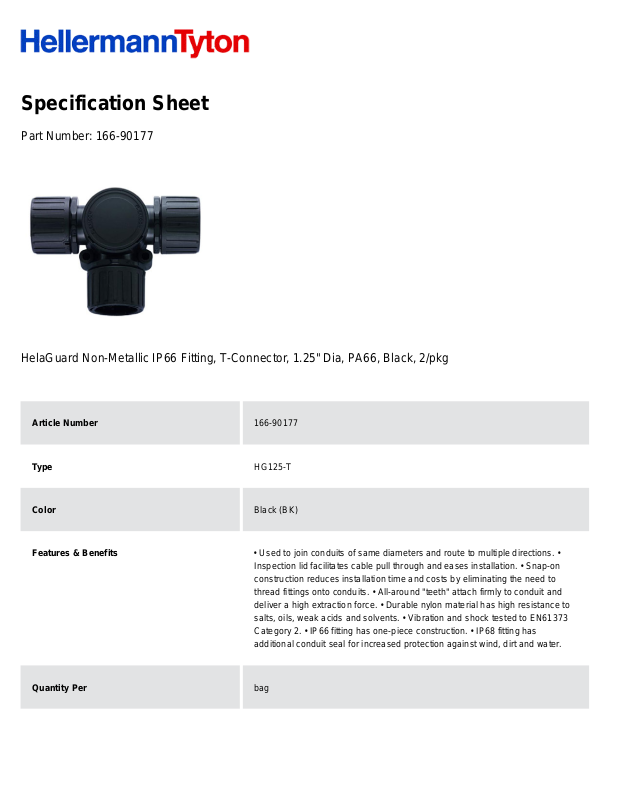

Specification Sheet
Part Number:
166-90177
HelaGuard Non-Metallic IP66 Fitting, T-Connector, 1.25" Dia, PA66, Black, 2/pkg
Article Number
166-90177
Type
HG125-T
Color
Black (BK)
Features & Benefits
• Used to join conduits of same diameters and route to multiple directions. •
Inspection lid facilitates cable pull through and eases installation. • Snap-on
construction reduces installation time and costs by eliminating the need to
thread fittings onto conduits. • All-around "teeth" attach firmly to conduit and
deliver a high extraction force. • Durable nylon material has high resistance to
salts, oils, weak acids and solvents. • Vibration and shock tested to EN61373
Category 2. • IP66 fitting has one-piece construction. • IP68 fitting has
additional conduit seal for increased protection against wind, dirt and water.
Quantity Per
bag
Product Description
T- Connectors are used to join three same diameter corrugated conduits
together, and redirect cables into multiple directions. Constructed of a very
durable nylon material with a high resistance to salts, oils, weak acids and
solvents. Designed for easy removal with a small screwdriver. Choose from
IP66 or IP68 ingress protection rated fittings.
Short Description
HelaGuard Non-Metallic IP66 Fitting, T-Connector, 1.25" Dia, PA66, Black,
2/pkg
Global Part Name
HG125-T-PA66-BK
Length L (Imperial)
4.33
Length L (Metric)
110
Variant
T-Connector
Outside Diameter OD(Imperial)
5.91
Outside Diameter OD(metric)
150
Nominal Diameter (Imperial)
1-1/4
Nominal Diameter (Metric)
42
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
2
Package Quantity (Metric)
2
Customs Number
3926909988
