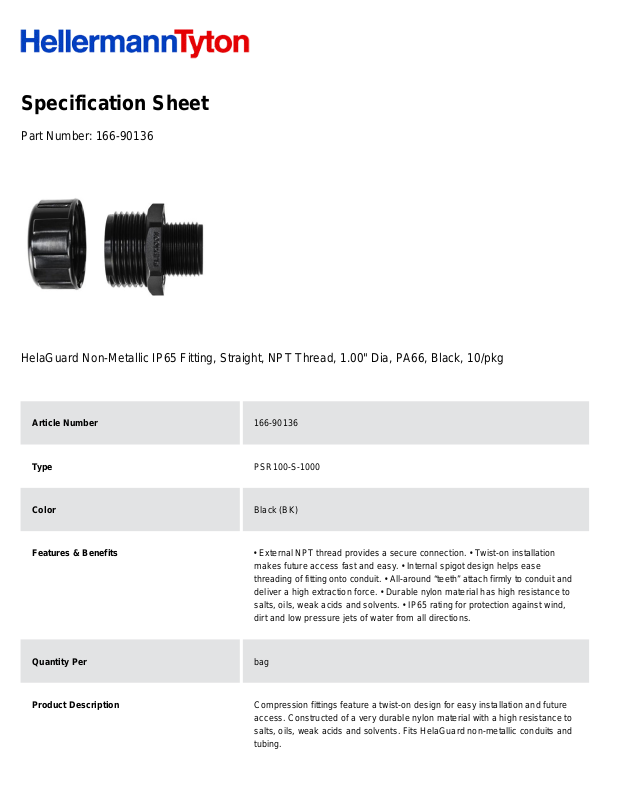

Specification Sheet
Part Number:
166-90136
HelaGuard Non-Metallic IP65 Fitting, Straight, NPT Thread, 1.00" Dia, PA66, Black, 10/pkg
Article Number
166-90136
Type
PSR100-S-1000
Color
Black (BK)
Features & Benefits
• External NPT thread provides a secure connection. • Twist-on installation
makes future access fast and easy. • Internal spigot design helps ease
threading of fitting onto conduit. • All-around “teeth” attach firmly to conduit and
deliver a high extraction force. • Durable nylon material has high resistance to
salts, oils, weak acids and solvents. • IP65 rating for protection against wind,
dirt and low pressure jets of water from all directions.
Quantity Per
bag
Product Description
Compression fittings feature a twist-on design for easy installation and future
access. Constructed of a very durable nylon material with a high resistance to
salts, oils, weak acids and solvents. Fits HelaGuard non-metallic conduits and
tubing.
Short Description
HelaGuard Non-Metallic IP65 Fitting, Straight, NPT Thread, 1.00" Dia, PA66,
Black, 10/pkg
Global Part Name
PSR100-S-1000-PA66-BK
Length L (Imperial)
1.89
Length L (Metric)
48
Variant
Straight
Outside Diameter OD(Imperial)
1.89
Outside Diameter OD(metric)
48
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
32
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +248°F (-40°C to +120°C)
Reach Complaint(Article 33)
Yes
