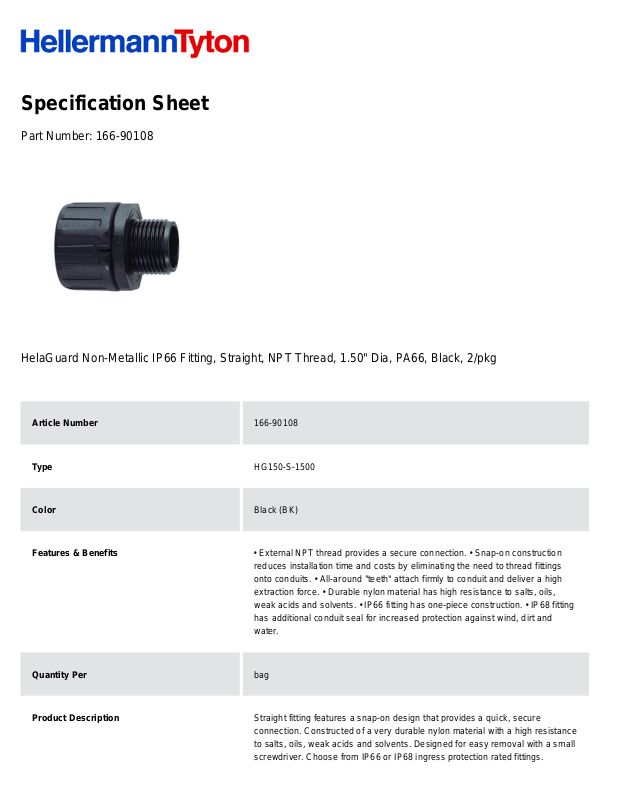

Specification Sheet
Part Number:
166-90108
HelaGuard Non-Metallic IP66 Fitting, Straight, NPT Thread, 1.50" Dia, PA66, Black, 2/pkg
Article Number
166-90108
Type
HG150-S-1500
Color
Black (BK)
Features & Benefits
• External NPT thread provides a secure connection. • Snap-on construction
reduces installation time and costs by eliminating the need to thread fittings
onto conduits. • All-around "teeth" attach firmly to conduit and deliver a high
extraction force. • Durable nylon material has high resistance to salts, oils,
weak acids and solvents. • IP66 fitting has one-piece construction. • IP68 fitting
has additional conduit seal for increased protection against wind, dirt and
water.
Quantity Per
bag
Product Description
Straight fitting features a snap-on design that provides a quick, secure
connection. Constructed of a very durable nylon material with a high resistance
to salts, oils, weak acids and solvents. Designed for easy removal with a small
screwdriver. Choose from IP66 or IP68 ingress protection rated fittings.
Short Description
HelaGuard Non-Metallic IP66 Fitting, Straight, NPT Thread, 1.50" Dia, PA66,
Black, 2/pkg
Global Part Name
HG150-S-1500-PA66-BK
Length L (Imperial)
2.64
Length L (Metric)
67
Variant
Straight
Outside Diameter OD(Imperial)
2.99
Outside Diameter OD(metric)
76
Nominal Diameter (Imperial)
2-1/8
Nominal Diameter (Metric)
54
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Reach Complaint(Article 33)
Yes
