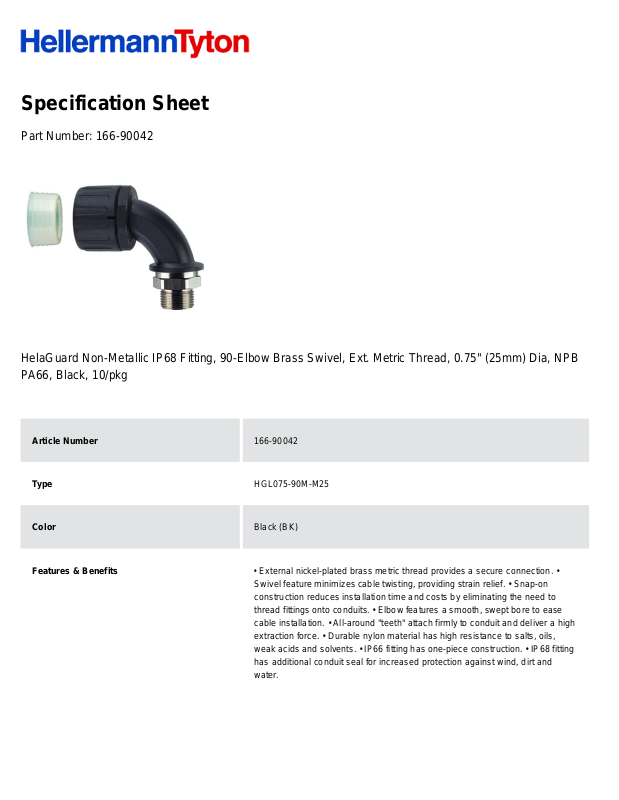

Specification Sheet
Part Number:
166-90042
HelaGuard Non-Metallic IP68 Fitting, 90-Elbow Brass Swivel, Ext. Metric Thread, 0.75" (25mm) Dia, NPB
PA66, Black, 10/pkg
Article Number
166-90042
Type
HGL075-90M-M25
Color
Black (BK)
Features & Benefits
• External nickel-plated brass metric thread provides a secure connection. •
Swivel feature minimizes cable twisting, providing strain relief. • Snap-on
construction reduces installation time and costs by eliminating the need to
thread fittings onto conduits. • Elbow features a smooth, swept bore to ease
cable installation. • All-around "teeth" attach firmly to conduit and deliver a high
extraction force. • Durable nylon material has high resistance to salts, oils,
weak acids and solvents. • IP66 fitting has one-piece construction. • IP68 fitting
has additional conduit seal for increased protection against wind, dirt and
water.
Product Description
Elbow fitting features a snap-on design and a nickel-plated brass metric thread
that provides a quick, secure connection. Constructed of a very durable nylon
material with a high resistance to salts, oils, weak acids and solvents.
Designed for easy removal with a small screwdriver. Choose from IP66 or IP68
ingress protection rated fittings.
Short Description
HelaGuard Non-Metallic IP68 Fitting, 90-Elbow Brass Swivel, Ext. Metric
Thread, 0.75" (25mm) Dia, NPB PA66, Black, 10/pkg
Global Part Name
HGL075-90M-M25-PA66/NPB-BK
Length L (Imperial)
1.13
Length L (Metric)
28.5
Variant
90° Elbow
Outside Diameter OD(Imperial)
1.73
Outside Diameter OD(metric)
44
Nominal Diameter (Imperial)
3/4
Nominal Diameter (Metric)
28
Material
Polyamide 6.6 (PA66) Nickel Plated Brass (NPB)
Material Shortcut
NPB PA66
Flammability
UL 94 V2
