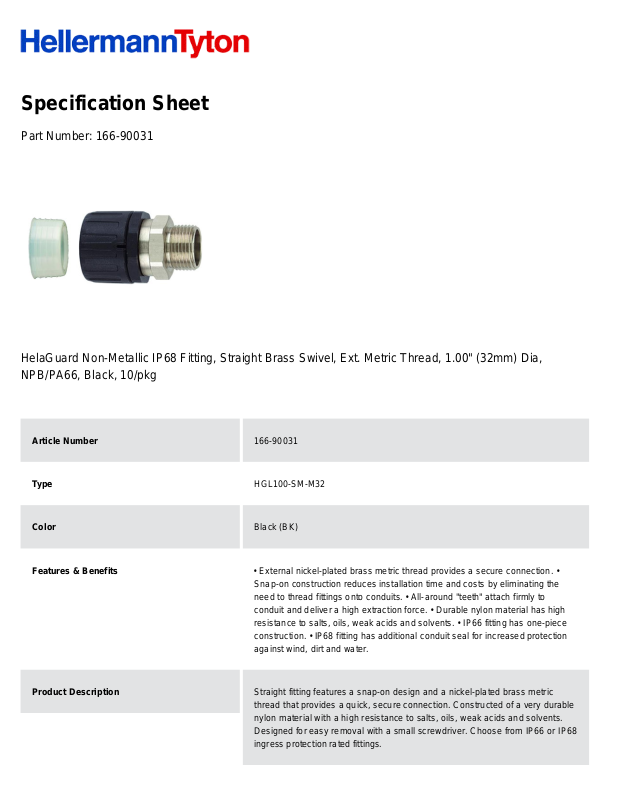

Specification Sheet
Part Number:
166-90031
HelaGuard Non-Metallic IP68 Fitting, Straight Brass Swivel, Ext. Metric Thread, 1.00" (32mm) Dia,
NPB/PA66, Black, 10/pkg
Article Number
166-90031
Type
HGL100-SM-M32
Color
Black (BK)
Features & Benefits
• External nickel-plated brass metric thread provides a secure connection. •
Snap-on construction reduces installation time and costs by eliminating the
need to thread fittings onto conduits. • All-around "teeth" attach firmly to
conduit and deliver a high extraction force. • Durable nylon material has high
resistance to salts, oils, weak acids and solvents. • IP66 fitting has one-piece
construction. • IP68 fitting has additional conduit seal for increased protection
against wind, dirt and water.
Product Description
Straight fitting features a snap-on design and a nickel-plated brass metric
thread that provides a quick, secure connection. Constructed of a very durable
nylon material with a high resistance to salts, oils, weak acids and solvents.
Designed for easy removal with a small screwdriver. Choose from IP66 or IP68
ingress protection rated fittings.
Short Description
HelaGuard Non-Metallic IP68 Fitting, Straight Brass Swivel, Ext. Metric Thread,
1.00" (32mm) Dia, NPB/PA66, Black, 10/pkg
Global Part Name
HGL100-SM-M32-PA66/NPB-BK
Length L (Imperial)
1.36
Length L (Metric)
34.5
Variant
Straight
Outside Diameter OD(Imperial)
2.01
Outside Diameter OD(metric)
51
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
34
Material
Polyamide 6.6 (PA66) Nickel Plated Brass (NPB)
Material Shortcut
PA66 NPB
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Reach Complaint(Article 33)
Yes
