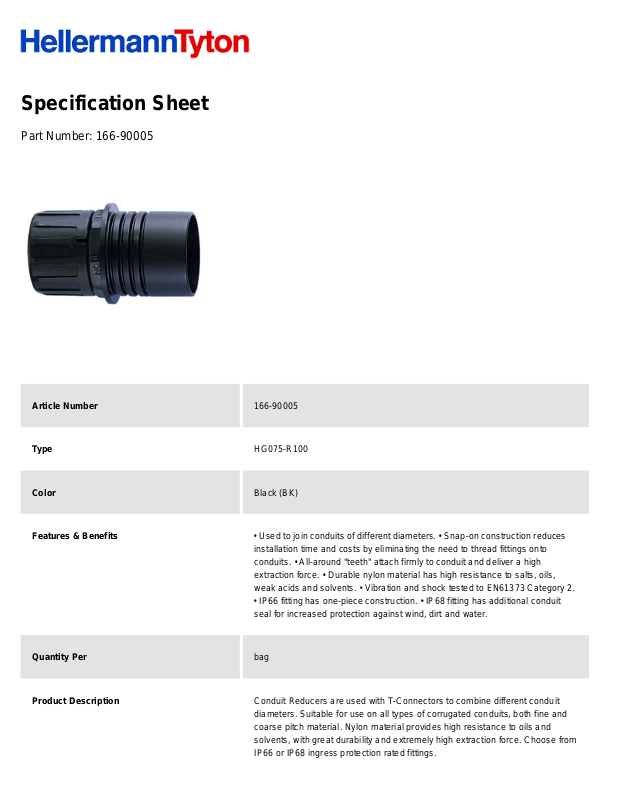

Specification Sheet
Part Number:
166-90005
Article Number
166-90005
Type
HG075-R100
Color
Black (BK)
Features & Benefits
• Used to join conduits of different diameters. • Snap-on construction reduces
installation time and costs by eliminating the need to thread fittings onto
conduits. • All-around "teeth" attach firmly to conduit and deliver a high
extraction force. • Durable nylon material has high resistance to salts, oils,
weak acids and solvents. • Vibration and shock tested to EN61373 Category 2.
• IP66 fitting has one-piece construction. • IP68 fitting has additional conduit
seal for increased protection against wind, dirt and water.
Quantity Per
bag
Product Description
Conduit Reducers are used with T-Connectors to combine different conduit
diameters. Suitable for use on all types of corrugated conduits, both fine and
coarse pitch material. Nylon material provides high resistance to oils and
solvents, with great durability and extremely high extraction force. Choose from
IP66 or IP68 ingress protection rated fittings.
Short Description
HelaGuard Non-Metallic IP66 Conduit Reducer, 1.00" down-to 0.75" Dia, PA66,
Black, 5/pkg
Global Part Name
HG075-R100-PA66-BK
Length L (Imperial)
2.55
Length L (Metric)
64.8
Variant
Reducer
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
34
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-58°F to +275°F (-50°C to +135°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
5
Package Quantity (Metric)
5
Customs Number
3926909988
