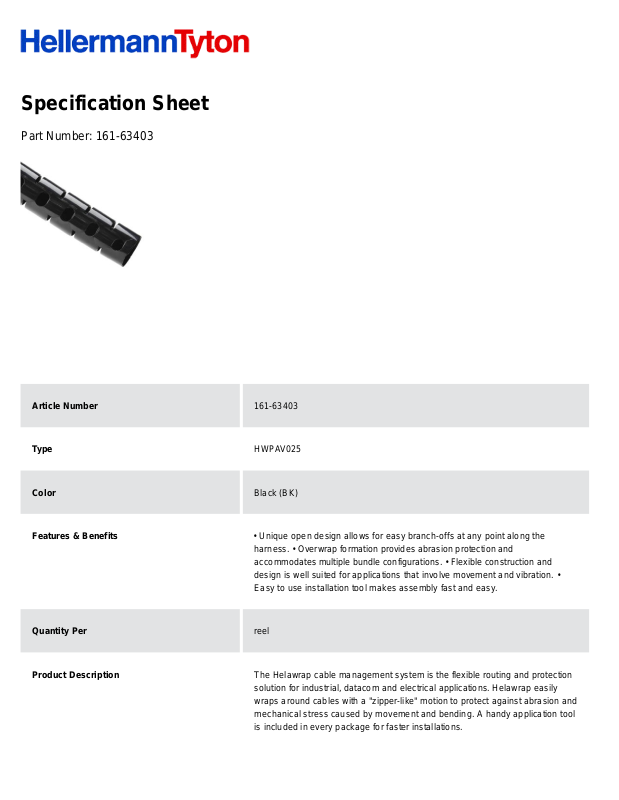

Specification Sheet
Part Number:
161-63403
Article Number
161-63403
Type
HWPAV025
Color
Black (BK)
Features & Benefits
• Unique open design allows for easy branch-offs at any point along the
harness. • Overwrap formation provides abrasion protection and
accommodates multiple bundle configurations. • Flexible construction and
design is well suited for applications that involve movement and vibration. •
Easy to use installation tool makes assembly fast and easy.
Quantity Per
reel
Product Description
The Helawrap cable management system is the flexible routing and protection
solution for industrial, datacom and electrical applications. Helawrap easily
wraps around cables with a "zipper-like" motion to protect against abrasion and
mechanical stress caused by movement and bending. A handy application tool
is included in every package for faster installations.
Short Description
Helawrap, HWPAV025, 1" (25mm) Dia, PA6V0, Black, 100 ft/reel
Global Part Name
HWPAV025-PA6V0-BK
Length L (Imperial)
100.0
Length L (Metric)
30.48
Variant
Spiral Binding
Bundle Diameter Min (Imperial)
0.91
Bundle Diameter Min (Metric)
23.0
Bundle Diameter Max (Imperial)
1.06
Bundle Diameter Max (Metric)
27.0
Diameter D (imperial)
1.0
Diameter D (metric)
25.0
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
25.0
Wall Thickness WT (Imperial)
0.041
Wall Thickness WT (Metric)
1.05
