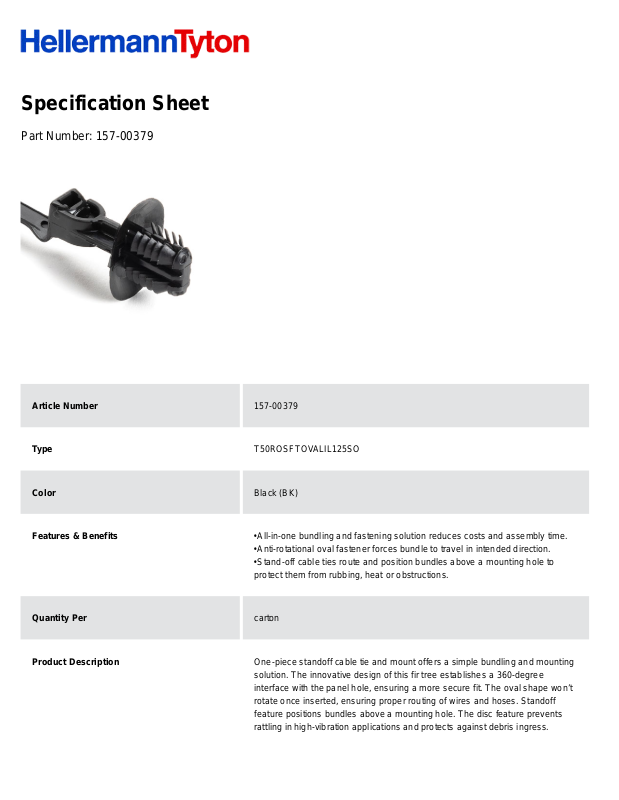

HellermannTyton 157-00379 Specification Sheet

Specification Sheet
Part Number:
157-00379
Article Number
Type
T50ROSFTOVALIL125SO
Color
Features & Benefits
All-in-one bundling and fastening solution reduces costs and assembly time.
Anti-rotational oval fastener forces bundle to travel in intended direction.
Stand-off cable ties route and position bundles above a mounting hole to
protect them from rubbing, heat or obstructions.
Quantity Per
carton
Product Description
One-piece standoff cable tie and mount offers a simple bundling and mounting
solution. The innovative design of this fir tree establishes a 360-degree
interface with the panel hole, ensuring a more secure fit. The oval shape won’t
rotate once inserted, ensuring proper routing of wires and hoses. Standoff
feature positions bundles above a mounting hole. The disc feature prevents
rattling in high-vibration applications and protects against debris ingress.
Short Description
1-Piece Cable Tie/Fir Tree Mount with Disc, 6.5"L, 8-8.5mm Mounting Hole,
PA66HS, Black, 500/ctn
Global Part Name
T50ROSFTOVALIL125SO-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
6.5
Length L (Metric)
164.0
Offset Length(Imperial)
0.49
Offset Length(Metric)
12.5
Fixation Method
Fir Tree for oval holes
Identification Plate Position
none
Releasable Closure
No
Variant
Outside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.04
Bundle Diameter Min (Metric)
1.0
Bundle Diameter Max (Imperial)
1.38
Bundle Diameter Max (Metric)
35.0
Panel Thickness Min(Imperial)
0.02
Panel Thickness Max(Imperial)
0.27
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
6.75
Mounting Hole Diameter D (Imperial)
0.244 " X 0.48 " 0.255 " X .492 " 0.255 " X 0.511 " 0.275 " X 0.472
Mounting Hole Diameter D (Metric)
7.0 x 12.0 mm 6.5 x 12.5 mm 6.5 x 13.0 mm 6.2 x 12.2 mm
Mounting Hole Diameter D Min (Imperial)
0.24
Mounting Hole Diameter D Max (Imperial)
0.51
Mounting Hole Diameter D Max (Metric)
13.0
Material
Polyamide 6.6 high impact modified, heat and UV-resistant (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
2000
Package Quantity (Metric)
2000
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
