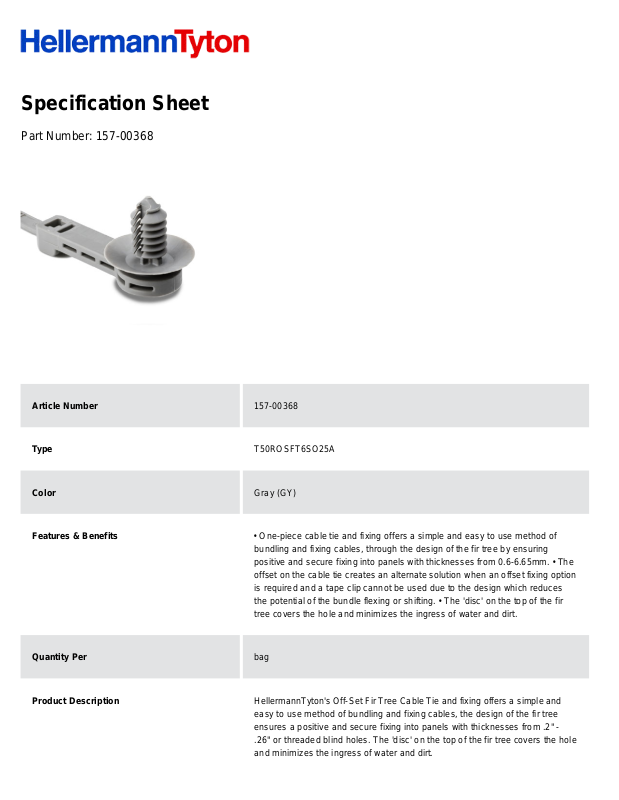

Specification Sheet
Part Number:
157-00368
Article Number
157-00368
Type
T50ROSFT6SO25A
Color
Gray (GY)
Features & Benefits
• One-piece cable tie and fixing offers a simple and easy to use method of
bundling and fixing cables, through the design of the fir tree by ensuring
positive and secure fixing into panels with thicknesses from 0.6-6.65mm. • The
offset on the cable tie creates an alternate solution when an offset fixing option
is required and a tape clip cannot be used due to the design which reduces
the potential of the bundle flexing or shifting. • The 'disc' on the top of the fir
tree covers the hole and minimizes the ingress of water and dirt.
Quantity Per
bag
Product Description
HellermannTyton's Off-Set Fir Tree Cable Tie and fixing offers a simple and
easy to use method of bundling and fixing cables, the design of the fir tree
ensures a positive and secure fixing into panels with thicknesses from .2" -
.26" or threaded blind holes. The 'disc' on the top of the fir tree covers the hole
and minimizes the ingress of water and dirt.
Short Description
1-Piece Cable Tie/Fir Tree Mount with Disc, 25mm Offset; 9.1"L, 6.1-7mm
Hole, PA66HIRHS, Grey, 500/pkg
Global Part Name
T50ROSFT6SO25A-PA66HIRHS-GY
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
9.1
Length L (Metric)
230.0
Offset Length(Imperial)
0.98
Offset Length(Metric)
25.0
Identification Plate Position
none
Releasable Closure
No
Width W (Imperial)
0.20
Width W (Metric)
5.1
Bundle Diameter Min (Imperial)
0.08
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
1.97
Bundle Diameter Max (Metric)
50.0
Height H (Imperial)
0.89
Height H (Metric)
21.2
Panel Thickness Min(Imperial)
0.02
Panel Thickness Max(Imperial)
0.26
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
6.65
Mounting Hole Diameter D (Imperial)
0.24 - 0.28 ";0.24 - 0.26
Mounting Hole Diameter D (Metric)
6.1 - 7.0 mm 6.35 mm (hexagonal)
Mounting Hole Diameter D Min (Imperial)
0.24
Mounting Hole Diameter D Max (Imperial)
0.28 ";0.26
Mounting Hole Diameter D Max (Metric)
7.0
Disc Diameter(Metric)
19.0
Disc Diameter (Imperial)
0.75
Material
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Shortcut
PA66HIRHS
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
