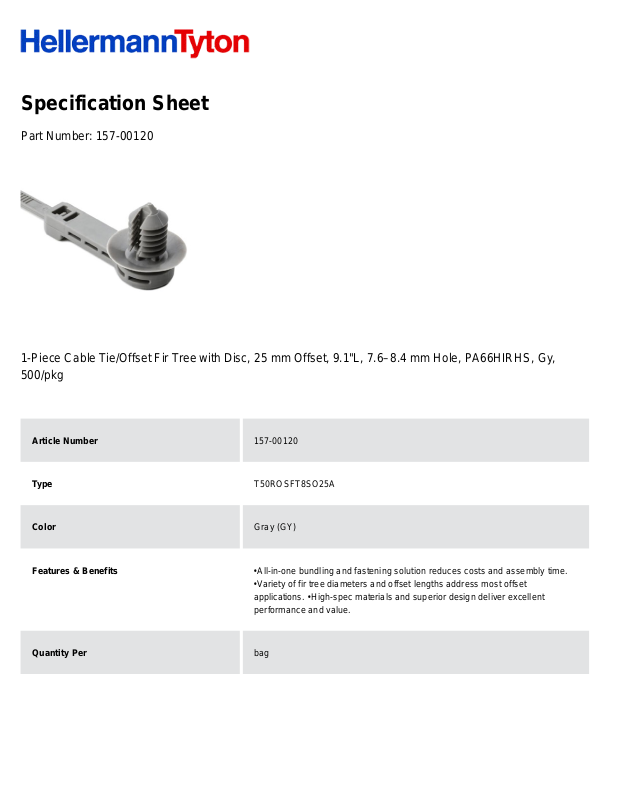

Specification Sheet
Part Number:
157-00120
1-Piece Cable Tie/Offset Fir Tree with Disc, 25 mm Offset, 9.1"L, 7.6–8.4 mm Hole, PA66HIRHS, Gy,
500/pkg
Article Number
157-00120
Type
T50ROSFT8SO25A
Color
Gray (GY)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
Variety of fir tree diameters and offset lengths address most offset
applications. •
High-spec materials and superior design deliver excellent
performance and value.
Quantity Per
bag
Product Description
Offset cable ties route and position bundles away from a mounting hole. Rigid
offset bar eliminates potential bending of wire or cables once installed. Multiple
offset distances and fir tree sizes cover the majority of industry offset
applications. The tie strap’s outside serration design provides a smooth surface
to protect soft bundles. HellermannTyton’s one-piece mounting ties offer a
complete solution by both bundling and mounting. Their ideal combination of
high-specification materials and superior design suit the needs of complex
applications.
Short Description
1-Piece Cable Tie/Offset Fir Tree with Disc, 25 mm Offset, 9.1"L, 7.6–8.4 mm
Hole, PA66HIRHS, Gy, 500/pkg
Global Part Name
T50ROSFT8SO25A-PA66HIRHS-GY
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
222.0
Length L (Imperial)
9.1
Length L (Metric)
230.0
Offset Length(Imperial)
0.98
Offset Length(Metric)
25.0
Fixation Method
Fir Tree
Identification Plate Position
none
Releasable Closure
No
Width W (Imperial)
0.20
Width W (Metric)
5.1
