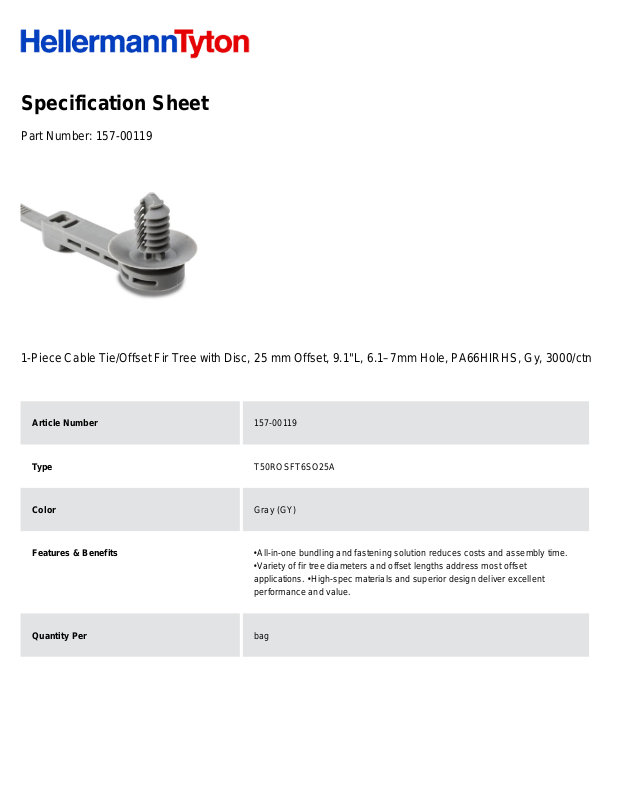

Page 1
Specification Sheet
Part Number:
157-00119
1-Piece Cable Tie/Offset Fir Tree with Disc, 25 mm Offset, 9.1"L, 6.1–7mm Hole, PA66HIRHS, Gy, 3000/ctn
Article Number
157-00119
Type
T50ROSFT6SO25A
Color
Gray (GY)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
Variety of fir tree diameters and offset lengths address most offset
applications. •
High-spec materials and superior design deliver excellent
performance and value.
Quantity Per
bag
Page 2
Product Description
Offset cable ties route and position bundles away from a mounting hole. Rigid
offset bar eliminates potential bending of wire or cables once installed. Multiple
offset distances and fir tree sizes cover the majority of industry offset
applications. The tie strap’s outside serration design provides a smooth surface
to protect soft bundles. HellermannTyton’s one-piece mounting ties offer a
complete solution by both bundling and mounting. Their ideal combination of
high-specification materials and superior design suit the needs of complex
applications.
Short Description
1-Piece Cable Tie/Offset Fir Tree with Disc, 25 mm Offset, 9.1"L, 6.1–7mm
Hole, PA66HIRHS, Gy, 3000/ctn
Global Part Name
T50ROSFT6SO25A-PA66HIRHS-GY
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
222.0
Length L (Imperial)
9.1
Length L (Metric)
230.0
Offset Length(Imperial)
0.98
Offset Length(Metric)
25.0
Fixation Method
Fir Tree
Identification Plate Position
none
Releasable Closure
No
Width W (Imperial)
0.20
Width W (Metric)
5.1
Page 3
Bundle Diameter Min (Imperial)
0.08
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
1.97
Bundle Diameter Max (Metric)
50.0
Height H (Imperial)
0.89
Height H (Metric)
21.20
Panel Thickness Min(Imperial)
0.02
Panel Thickness Max(Imperial)
0.26
Panel Thickness Min (Metric)
0.50
Panel Thickness Max (Metric)
6.65
Mounting Hole Diameter D (Imperial)
0.24 - 0.28 ";0.24 - 0.26
Mounting Hole Diameter D (Metric)
6.35 mm (hexagonal) 6.1 - 7.0 mm
Mounting Hole Diameter D Min (Imperial)
0.24
Mounting Hole Diameter D Max (Imperial)
0.28 ";0.26
Mounting Hole Diameter D Max (Metric)
7.0
Disc Diameter(Metric)
19.0
Disc Diameter (Imperial)
0.75
Page 4
Material
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Shortcut
PA66HIRHS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
3000
Package Quantity (Metric)
3000
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
