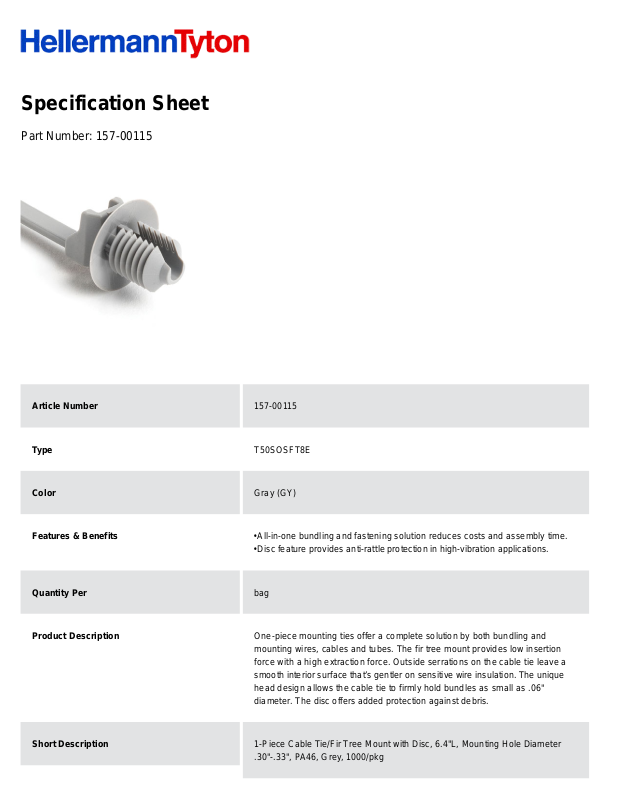

Specification Sheet
Part Number:
157-00115
Article Number
157-00115
Type
T50SOSFT8E
Color
Gray (GY)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
Disc feature provides anti-rattle protection in high-vibration applications.
Quantity Per
bag
Product Description
One-piece mounting ties offer a complete solution by both bundling and
mounting wires, cables and tubes. The fir tree mount provides low insertion
force with a high extraction force. Outside serrations on the cable tie leave a
smooth interior surface that’s gentler on sensitive wire insulation. The unique
head design allows the cable tie to firmly hold bundles as small as .06"
diameter. The disc offers added protection against debris.
Short Description
1-Piece Cable Tie/Fir Tree Mount with Disc, 6.4"L, Mounting Hole Diameter
.30"-.33", PA46, Grey, 1000/pkg
Global Part Name
T50SOSFT8E-PA46-GY
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
6.4
Length L (Metric)
163.0
Fixation Method
Fir Tree
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Outside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.04
Bundle Diameter Min (Metric)
1.0
Bundle Diameter Max (Imperial)
1.4
Bundle Diameter Max (Metric)
35.0
Thickness T (Metric)
1.3
Height H (Imperial)
0.43
Panel Thickness Min(Imperial)
0.02
Panel Thickness Max(Imperial)
0.24
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
6.0
Mounting Hole Diameter D (Imperial)
0.3 - 0.33
Mounting Hole Diameter D (Metric)
8.0 - 8.5 mm
Mounting Hole Diameter D Min (Imperial)
0.3
Mounting Hole Diameter D Max (Imperial)
0.33
Mounting Hole Diameter D Max (Metric)
8.5
Disc Diameter(Metric)
16.0
Material
Polyamide 4.6 (PA46)
Material Shortcut
PA46
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
1.56
