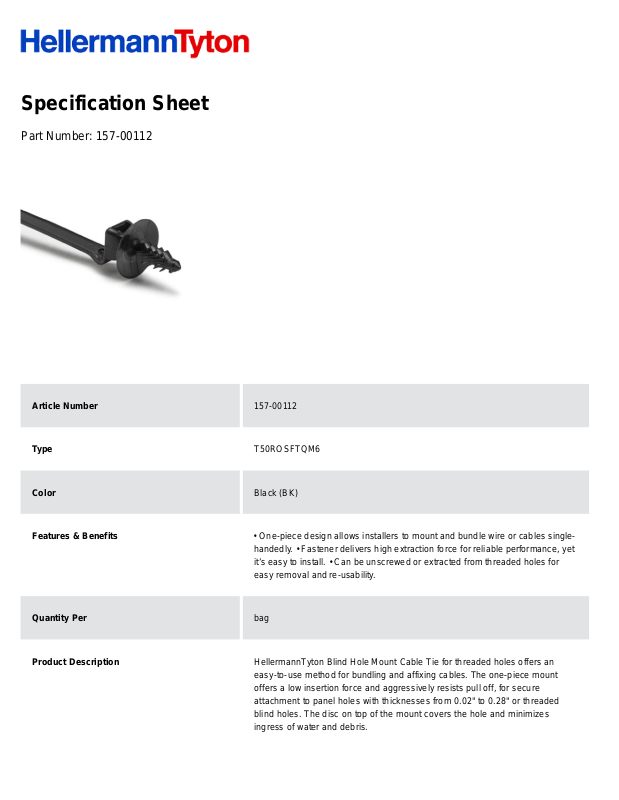

Page 1
Specification Sheet
Part Number:
157-00112
Article Number
157-00112
Type
T50ROSFTQM6
Color
Black (BK)
Features & Benefits
• One-piece design allows installers to mount and bundle wire or cables single-
handedly. • Fastener delivers high extraction force for reliable performance, yet
it’s easy to install. • Can be unscrewed or extracted from threaded holes for
easy removal and re-usability.
Quantity Per
bag
Product Description
HellermannTyton Blind Hole Mount Cable Tie for threaded holes offers an
easy-to-use method for bundling and affixing cables. The one-piece mount
offers a low insertion force and aggressively resists pull off, for secure
attachment to panel holes with thicknesses from 0.02" to 0.28" or threaded
blind holes. The disc on top of the mount covers the hole and minimizes
ingress of water and debris.
Page 2
Short Description
1-Piece Cable Tie/Fir Tree Mount with Disc, 8"L, 0.24" - 0.27" Mounting Hole,
PA66HIRHSUV, Black, 500/bag
Global Part Name
T50ROSFTQM6-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
222
Length L (Imperial)
8.0
Length L (Metric)
203.2
Fixation Method
Fir Tree
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Width W (Imperial)
0.20
Width W (Metric)
5.08
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
1.97
Bundle Diameter Max (Metric)
50.0
Page 3
Thickness T (Imperial)
0.06
Thickness T (Metric)
1.5
Height H (Imperial)
.54
Height H (Metric)
13.83
Diameter D (imperial)
0.25
Diameter D (metric)
6.0
Panel Thickness Min(Imperial)
0.02
Panel Thickness Max(Imperial)
0.28
Panel Thickness Min (Metric)
0.6
Panel Thickness Max (Metric)
7.0
Mounting Hole Diameter D (Imperial)
0.24
Mounting Hole Diameter D (Metric)
M6
Mounting Hole Diameter D Min (Imperial)
0.24
Mounting Hole Diameter D Max (Imperial)
0.24
Disc Diameter(Metric)
15,88
Disc Diameter (Imperial)
0.31
Page 4
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
