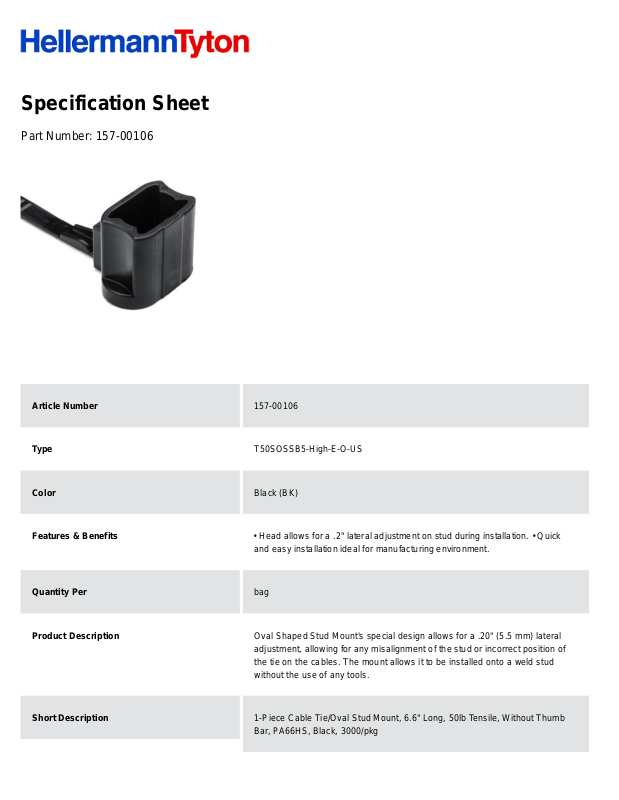

Specification Sheet
Part Number:
157-00106
Article Number
157-00106
Type
T50SOSSB5-High-E-O-US
Color
Black (BK)
Features & Benefits
• Head allows for a .2" lateral adjustment on stud during installation. • Quick
and easy installation ideal for manufacturing environment.
Quantity Per
bag
Product Description
Oval Shaped Stud Mount's special design allows for a .20" (5.5 mm) lateral
adjustment, allowing for any misalignment of the stud or incorrect position of
the tie on the cables. The mount allows it to be installed onto a weld stud
without the use of any tools.
Short Description
1-Piece Cable Tie/Oval Stud Mount, 6.6" Long, 50lb Tensile, Without Thumb
Bar, PA66HS, Black, 3000/pkg
Global Part Name
T50SOSSB5-High-E-O-US-PA66HS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
6.6
Length L (Metric)
167.0
Fixation Method
Weld Stud Fixing
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Width W (Imperial)
0.2
Width W (Metric)
5.0
Bundle Diameter Min (Imperial)
0.04
Bundle Diameter Min (Metric)
1.0
Bundle Diameter Max (Imperial)
1.4
Bundle Diameter Max (Metric)
35.0
Stud Diameter (Metric)
5.0 mm
Stud Diamater (Imperial)
0.20
