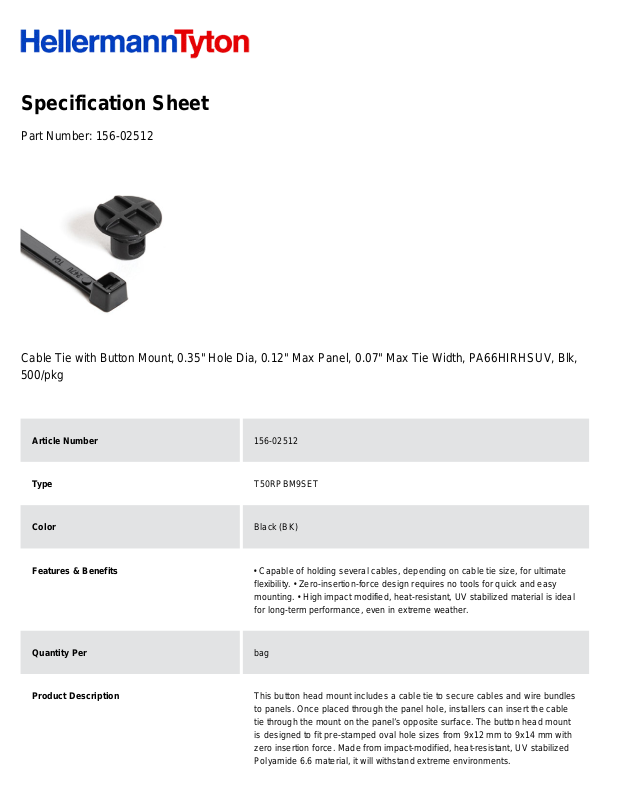

Specification Sheet
Part Number:
156-02512
Cable Tie with Button Mount, 0.35" Hole Dia, 0.12" Max Panel, 0.07" Max Tie Width, PA66HIRHSUV, Blk,
500/pkg
Article Number
156-02512
Type
T50RPBM9SET
Color
Black (BK)
Features & Benefits
• Capable of holding several cables, depending on cable tie size, for ultimate
flexibility. • Zero-insertion-force design requires no tools for quick and easy
mounting. • High impact modified, heat-resistant, UV stabilized material is ideal
for long-term performance, even in extreme weather.
Quantity Per
bag
Product Description
This button head mount includes a cable tie to secure cables and wire bundles
to panels. Once placed through the panel hole, installers can insert the cable
tie through the mount on the panel’s opposite surface. The button head mount
is designed to fit pre-stamped oval hole sizes from 9x12 mm to 9x14 mm with
zero insertion force. Made from impact-modified, heat-resistant, UV stabilized
Polyamide 6.6 material, it will withstand extreme environments.
Short Description
Cable Tie with Button Mount, 0.35" Hole Dia, 0.12" Max Panel, 0.07" Max Tie
Width, PA66HIRHSUV, Blk, 500/pkg
Global Part Name
T50RPBM9SET-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225.0
Length L (Imperial)
8.0
Length L (Metric)
203.2
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Width W (Imperial)
0.67
Width W (Metric)
17.0
Bundle Diameter Max (Imperial)
1.97
Bundle Diameter Max (Metric)
50.0
Cable Ties
T50R
Height H (Imperial)
0.53
Height H (Metric)
13.40
Panel Thickness Max(Imperial)
0.12
Panel Thickness Max (Metric)
3.0
Mounting Hole Diameter D (Imperial)
0.35 x 0.47 ", 0.35 x 0.55
Mounting Hole Diameter D (Metric)
9.0 x 12.0 mm 9.0 x 14.0 mm
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Flammability
UL 94 HB
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
