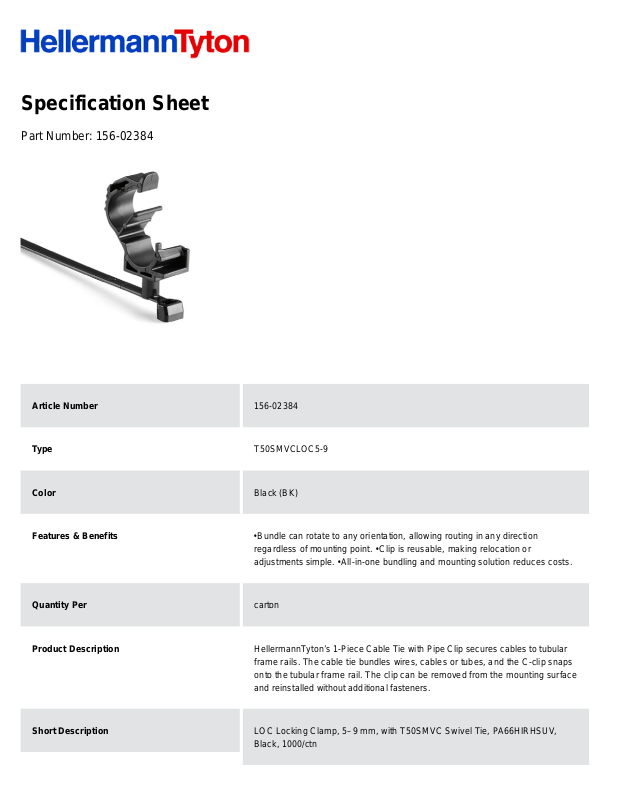

HellermannTyton 156-02384 Specification Sheet

Specification Sheet
Part Number:
156-02384
Article Number
Type
T50SMVCLOC5-9
Color
Features & Benefits
Bundle can rotate to any orientation, allowing routing in any direction
regardless of mounting point. •
Clip is reusable, making relocation or
adjustments simple. •
All-in-one bundling and mounting solution reduces costs.
Quantity Per
carton
Product Description
HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular
frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps
onto the tubular frame rail. The clip can be removed from the mounting surface
and reinstalled without additional fasteners.
Short Description
LOC Locking Clamp, 5–9 mm, with T50SMVC Swivel Tie, PA66HIRHSUV,
Black, 1000/ctn
Global Part Name
T50SMVCLOC5-9-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
50
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
8.3
Length L (Metric)
210.0
Fixation Method
Omega Clips
Identification Plate Position
none
Width W (Imperial)
0.47
Width W (Metric)
12.00
Bundle Diameter Min (Imperial)
0.20
Bundle Diameter Min (Metric)
50.0
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.0
Height H (Imperial)
1.08
Height H (Metric)
23.6
Depth D (imperial)
0.47
Depth D (metric)
12.0
Mounting Hole Diameter D (Imperial)
0.2 " - 0.35
Mounting Hole Diameter D (Metric)
5.0-9.0 mm
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
Material Cable Tie
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Flammability
UL 94 HB
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Customs Number
3926909988
Weight (Metric)
2.21
Weight (Imperial)
0.08
