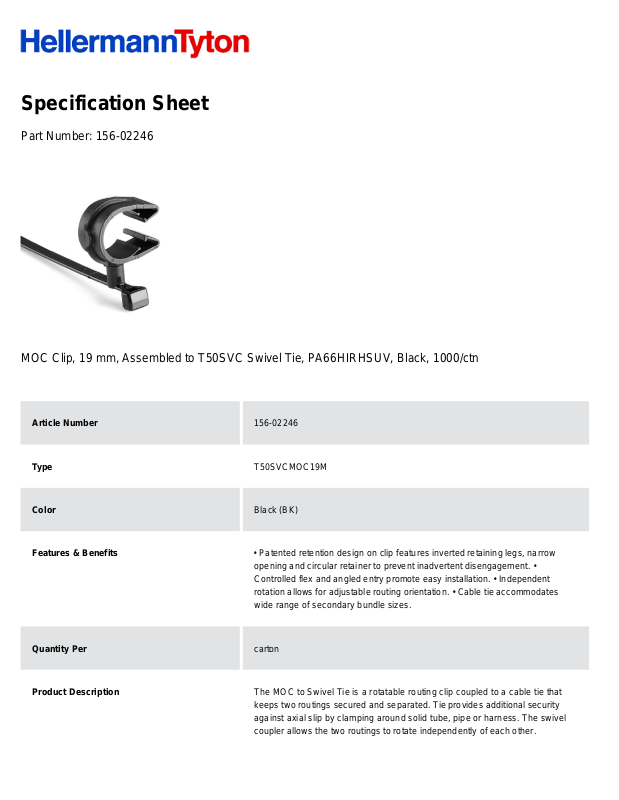

Specification Sheet
Part Number:
156-02246
MOC Clip, 19 mm, Assembled to T50SVC Swivel Tie, PA66HIRHSUV, Black, 1000/ctn
Article Number
156-02246
Type
T50SVCMOC19M
Color
Black (BK)
Features & Benefits
• Patented retention design on clip features inverted retaining legs, narrow
opening and circular retainer to prevent inadvertent disengagement. •
Controlled flex and angled entry promote easy installation. • Independent
rotation allows for adjustable routing orientation. • Cable tie accommodates
wide range of secondary bundle sizes.
Quantity Per
carton
Product Description
The MOC to Swivel Tie is a rotatable routing clip coupled to a cable tie that
keeps two routings secured and separated. Tie provides additional security
against axial slip by clamping around solid tube, pipe or harness. The swivel
coupler allows the two routings to rotate independently of each other.
Short Description
MOC Clip, 19 mm, Assembled to T50SVC Swivel Tie, PA66HIRHSUV, Black,
1000/ctn
Global Part Name
T50SVCMOC19M-PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
50
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
1.29
Length L (Metric)
32.7
Fixation Method
Omega Clips
Identification Plate Position
none
Bundle Diameter Min (Imperial)
0.67
Bundle Diameter Min (Metric)
17.0
Bundle Diameter Max (Imperial)
0.86
Bundle Diameter Max (Metric)
21.8
Height H (Imperial)
1.76
Height H (Metric)
44.8
Depth D (imperial)
0.47
Depth D (metric)
12.0
