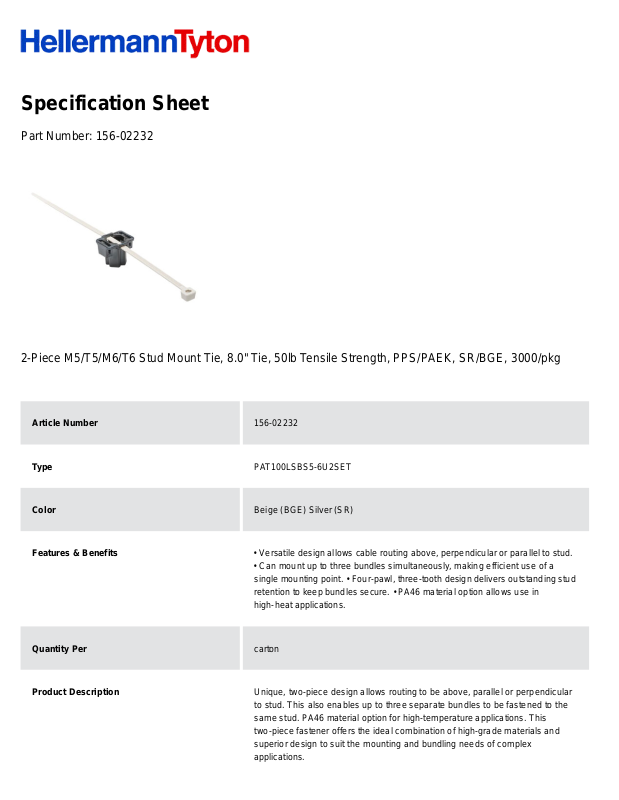

Specification Sheet
Part Number:
156-02232
2-Piece M5/T5/M6/T6 Stud Mount Tie, 8.0" Tie, 50lb Tensile Strength, PPS/PAEK, SR/BGE, 3000/pkg
Article Number
156-02232
Type
PAT100LSBS5-6U2SET
Color
Beige (BGE) Silver (SR)
Features & Benefits
• Versatile design allows cable routing above, perpendicular or parallel to stud.
• Can mount up to three bundles simultaneously, making efficient use of a
single mounting point. • Four-pawl, three-tooth design delivers outstanding stud
retention to keep bundles secure. • PA46 material option allows use in
high-heat applications.
Quantity Per
carton
Product Description
Unique, two-piece design allows routing to be above, parallel or perpendicular
to stud. This also enables up to three separate bundles to be fastened to the
same stud. PA46 material option for high-temperature applications. This
two-piece fastener offers the ideal combination of high-grade materials and
superior design to suit the mounting and bundling needs of complex
applications.
Short Description
2-Piece M5/T5/M6/T6 Stud Mount Tie, 8.0" Tie, 50lb Tensile Strength,
PPS/PAEK, SR/BGE, 3000/pkg
Global Part Name
PAT100LSBS5-6U2SET-PPS/PAEK-ML/BGE
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
223
Length L (Imperial)
8.0
Length L (Metric)
203.2
Fixation Method
Stud Mount
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Width W (Imperial)
0.92
Width W (Metric)
23.25
Bundle Diameter Min (Imperial)
0.16
Bundle Diameter Min (Metric)
4.0
Bundle Diameter Max (Imperial)
1.97
Bundle Diameter Max (Metric)
50.0
