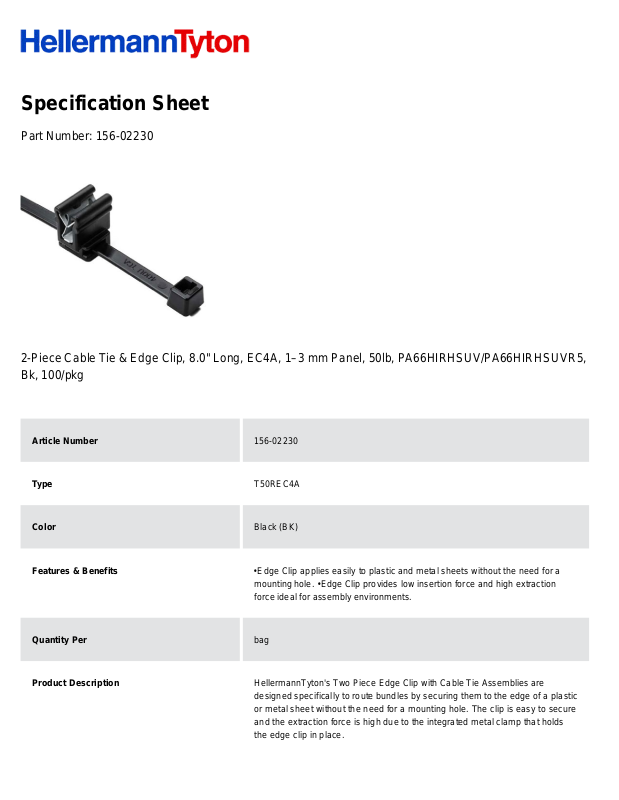

Specification Sheet
Part Number:
156-02230
2-Piece Cable Tie & Edge Clip, 8.0" Long, EC4A, 1–3 mm Panel, 50lb, PA66HIRHSUV/PA66HIRHSUVR5,
Bk, 100/pkg
Article Number
156-02230
Type
T50REC4A
Color
Black (BK)
Features & Benefits
•
Edge Clip applies easily to plastic and metal sheets without the need for a
mounting hole. •
Edge Clip provides low insertion force and high extraction
force ideal for assembly environments.
Quantity Per
bag
Product Description
HellermannTyton's Two Piece Edge Clip with Cable Tie Assemblies are
designed specifically to route bundles by securing them to the edge of a plastic
or metal sheet without the need for a mounting hole. The clip is easy to secure
and the extraction force is high due to the integrated metal clamp that holds
the edge clip in place.
Short Description
2-Piece Cable Tie & Edge Clip, 8.0" Long, EC4A, 1–3 mm Panel, 50lb,
PA66HIRHSUV/PA66HIRHSUVR5, Bk, 100/pkg
Global Part Name
T50REC4A-PA66HIRHSUVR5/PA66HIRHSUV-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
8.0
Length L (Metric)
203.2
Fixation Method
EdgeClip, top, assembled, 2 piece
Identification Plate Position
none
Releasable Closure
No
Variant
Inside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.20
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.0
