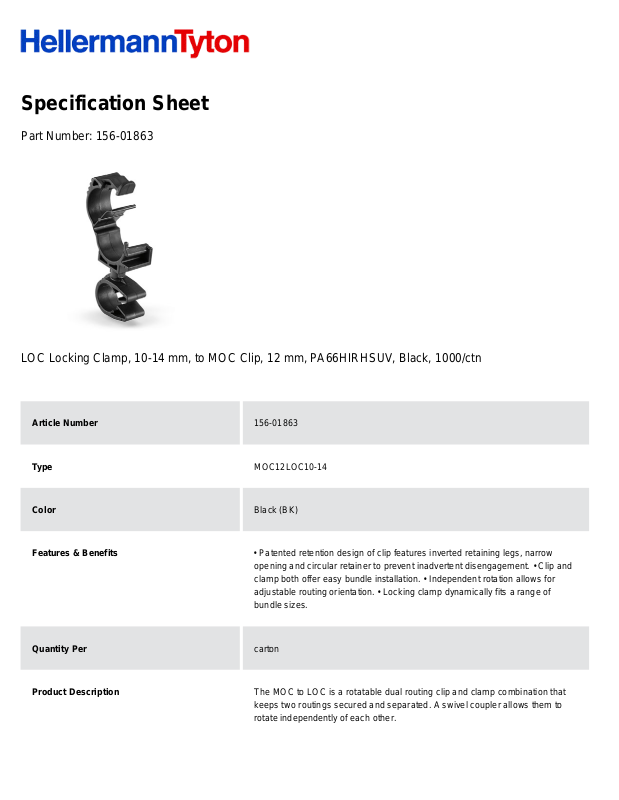

Specification Sheet
Part Number:
156-01863
LOC Locking Clamp, 10-14 mm, to MOC Clip, 12 mm, PA66HIRHSUV, Black, 1000/ctn
Article Number
156-01863
Type
MOC12LOC10-14
Color
Black (BK)
Features & Benefits
• Patented retention design of clip features inverted retaining legs, narrow
opening and circular retainer to prevent inadvertent disengagement. • Clip and
clamp both offer easy bundle installation. • Independent rotation allows for
adjustable routing orientation. • Locking clamp dynamically fits a range of
bundle sizes.
Quantity Per
carton
Product Description
The MOC to LOC is a rotatable dual routing clip and clamp combination that
keeps two routings secured and separated. A swivel coupler allows them to
rotate independently of each other.
Short Description
LOC Locking Clamp, 10-14 mm, to MOC Clip, 12 mm, PA66HIRHSUV, Black,
1000/ctn
Global Part Name
MOC12LOC10-14-PA66HIRHSUV-BK
Length L (Imperial)
1.86
Length L (Metric)
47.30
Variant
Clip to Clamp
Bundle Diameter Min (Imperial)
0.41
Bundle Diameter Min (Metric)
10.5
Bundle Diameter Max (Imperial)
0.54
Bundle Diameter Max (Metric)
13.8
Height H (Imperial)
1.08
Height H (Metric)
27.4
Depth D (imperial)
0.47
Depth D (metric)
12.0
Material
Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut
PA66HIRHSUV
