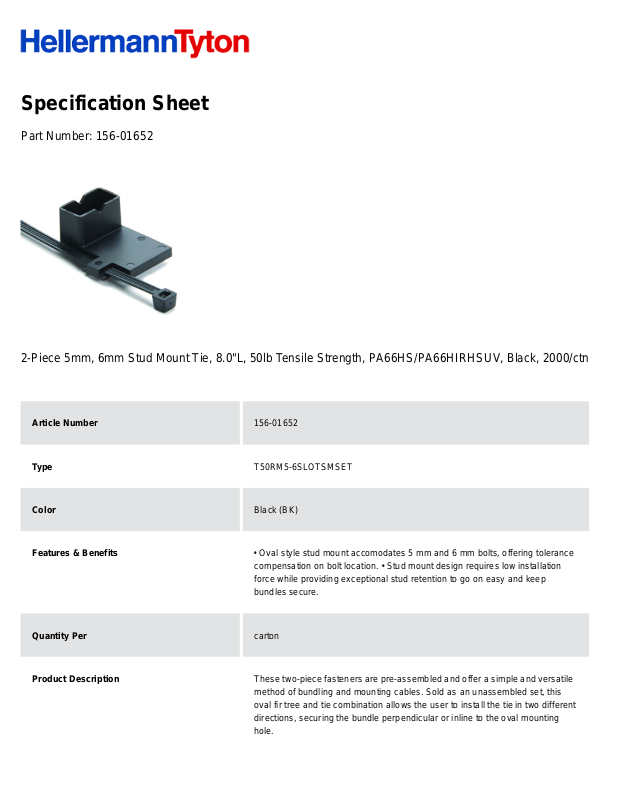

Specification Sheet
Part Number:
156-01652
2-Piece 5mm, 6mm Stud Mount Tie, 8.0"L, 50lb Tensile Strength, PA66HS/PA66HIRHSUV, Black, 2000/ctn
Article Number
156-01652
Type
T50RM5-6SLOTSMSET
Color
Black (BK)
Features & Benefits
• Oval style stud mount accomodates 5 mm and 6 mm bolts, offering tolerance
compensation on bolt location. • Stud mount design requires low installation
force while providing exceptional stud retention to go on easy and keep
bundles secure.
Quantity Per
carton
Product Description
These two-piece fasteners are pre-assembled and offer a simple and versatile
method of bundling and mounting cables. Sold as an unassembled set, this
oval fir tree and tie combination allows the user to install the tie in two different
directions, securing the bundle perpendicular or inline to the oval mounting
hole.
Short Description
2-Piece 5mm, 6mm Stud Mount Tie, 8.0"L, 50lb Tensile Strength,
PA66HS/PA66HIRHSUV, Black, 2000/ctn
Global Part Name
T50RM5-6SLOTSMSET-PA66HIRHS-BK
Fixation Method
Weld Stud Fixing
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Material
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Shortcut
PA66HIRHS
Operating Temperature (Metric)
-40°F to +230°F (-40°C to +110°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
2500
Package Quantity (Metric)
2500
Customs Number
3926909988
