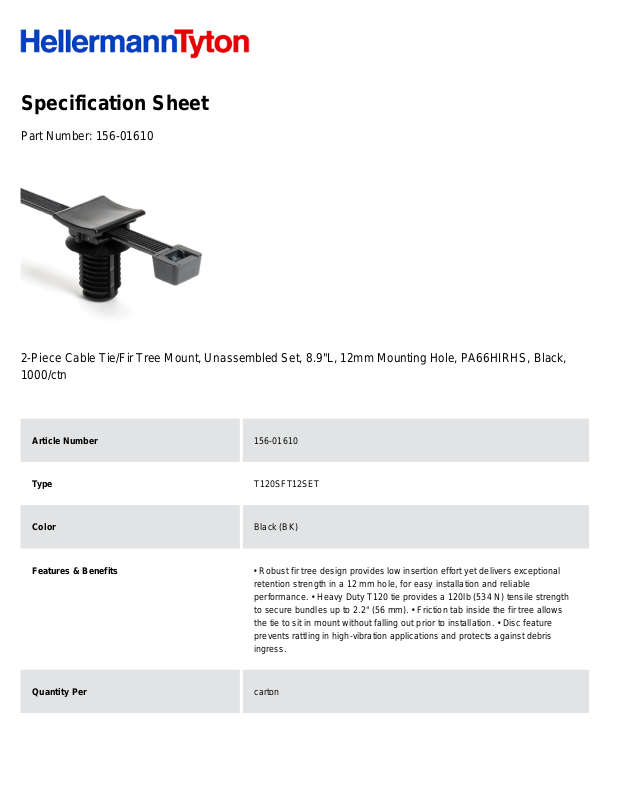

Specification Sheet
Part Number:
156-01610
2-Piece Cable Tie/Fir Tree Mount, Unassembled Set, 8.9"L, 12mm Mounting Hole, PA66HIRHS, Black,
1000/ctn
Article Number
156-01610
Type
T120SFT12SET
Color
Black (BK)
Features & Benefits
• Robust fir tree design provides low insertion effort yet delivers exceptional
retention strength in a 12 mm hole, for easy installation and reliable
performance. • Heavy Duty T120 tie provides a 120lb (534 N) tensile strength
to secure bundles up to 2.2" (56 mm). • Friction tab inside the fir tree allows
the tie to sit in mount without falling out prior to installation. • Disc feature
prevents rattling in high-vibration applications and protects against debris
ingress.
Quantity Per
carton
Product Description
These two-piece fasteners offer a simple and versatile method of bundling and
mounting cables. Sold as an unassembled set, this oval fir tree and tie
combination allows the user to install the tie in two different directions,
securing the bundle perpendicular or inline to the oval mounting hole.
Short Description
2-Piece Cable Tie/Fir Tree Mount, Unassembled Set, 8.9"L, 12mm Mounting
Hole, PA66HIRHS, Black, 1000/ctn
Global Part Name
T120SFT12SET-PA66HIRHSUV/PA66UV-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
0.89
Length L (Metric)
22.6
Fixation Method
Fir Tree
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.80
Width W (Metric)
20.40
Bundle Diameter Min (Imperial)
0.20
