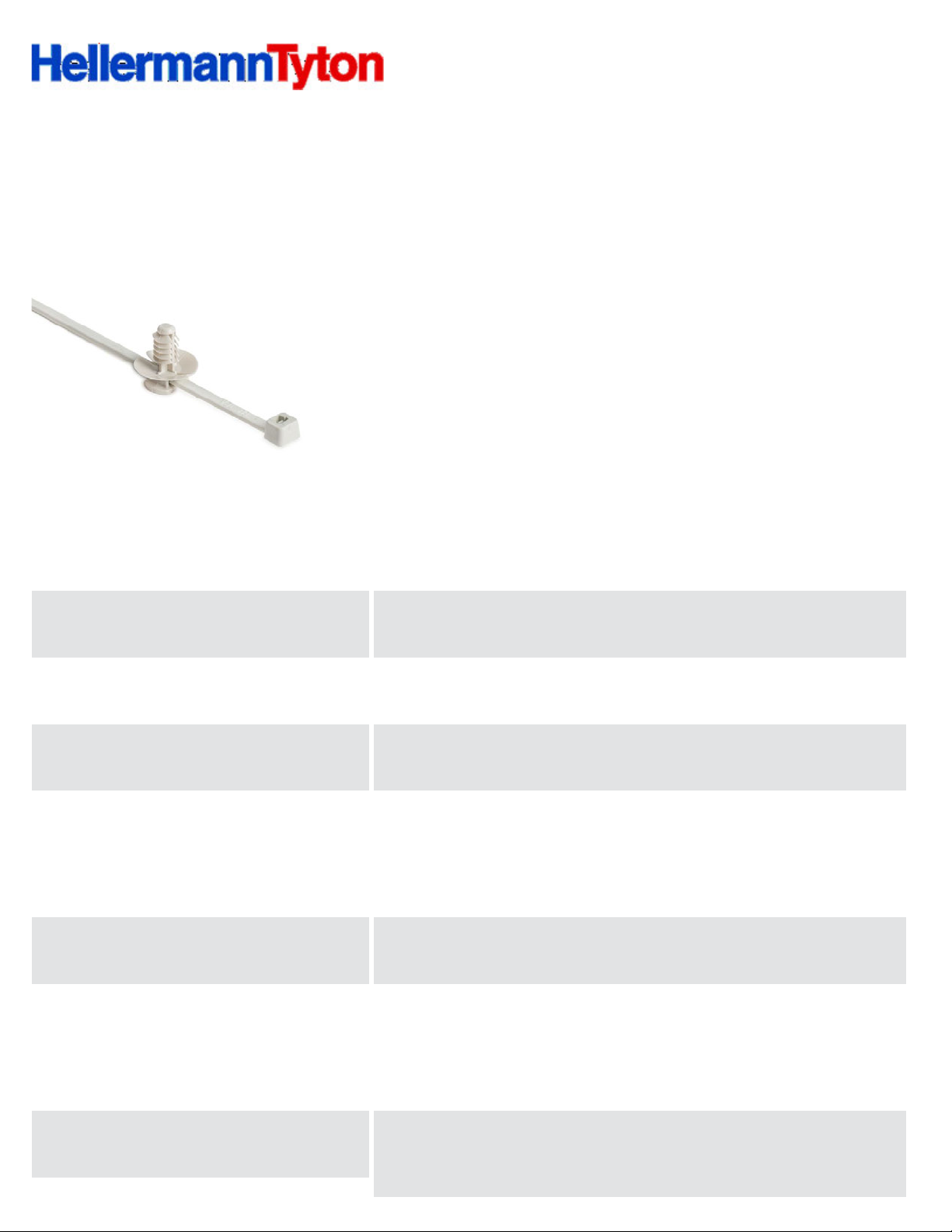

HellermannTyton 156-01555 Specification Sheet

Specification Sheet
Part Number:
156-01555
Article Number
Type
PAT100RFT6LG
Color
Beige (BGE)
Features & Benefits
Friction tab inside the fir tree allows the tie to sit in mount without falling out
prior to installation. •
Fir tree provides low insertion effort yet demonstrates high
extraction resistance. •
Disc feature prevents rattling in high-vibration
applications and protects against debris ingress.
Quantity Per
bag
Product Description
HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole.
The mount can slide along the cable tie to adjust orientation as needed. Fir
tree mounts are designed to provide a low insertion force and high extraction
force. This mount is sold as an assembly with the cable tie.
Short Description
2-Piece Cable Tie/Fir Tree Mount, 5.9"L, .22"–.25" Mounting Hole, 100lb,
PAEK, Beige, 500/bag
Global Part Name
PAT100RFT6LG-PAEK-BGE
Minimum Tensile Strength (Imperial)
100.0
Minimum Tensile Strength (Metric)
445
Length L (Imperial)
5.9
Length L (Metric)
149.9
Fixation Method
Fir Tree
Identification Plate Position
none
Tie Closure
plastic pawl
Width W (Imperial)
0.33
Width W (Metric)
8.0
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.5
Bundle Diameter Max (Imperial)
1.4
Bundle Diameter Max (Metric)
35.0
Height H (Imperial)
.75
Height H (Metric)
19.20
Panel Thickness Min(Imperial)
0.05
Panel Thickness Max(Imperial)
0.236
Panel Thickness Min (Metric)
1.25
Panel Thickness Max (Metric)
6.0
Mounting Hole Diameter D (Imperial)
0.22 - 0.25
Mounting Hole Diameter D (Metric)
5.6 - 6.4 mm
Mounting Hole Diameter D Min (Imperial)
0.22
Mounting Hole Diameter D Max (Imperial)
0.25
Mounting Hole Diameter D Max (Metric)
6.4
Disc Diameter(Metric)
18.6
Disc Diameter (Imperial)
0.73
Material
Polyaryletherketone (PAEK)
Material Shortcut
PAEK
Flammability
UL 94 V0
Halogen free
No
Operating Temperature (Metric)
-67°F to +392°F (-55°C to +200°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
