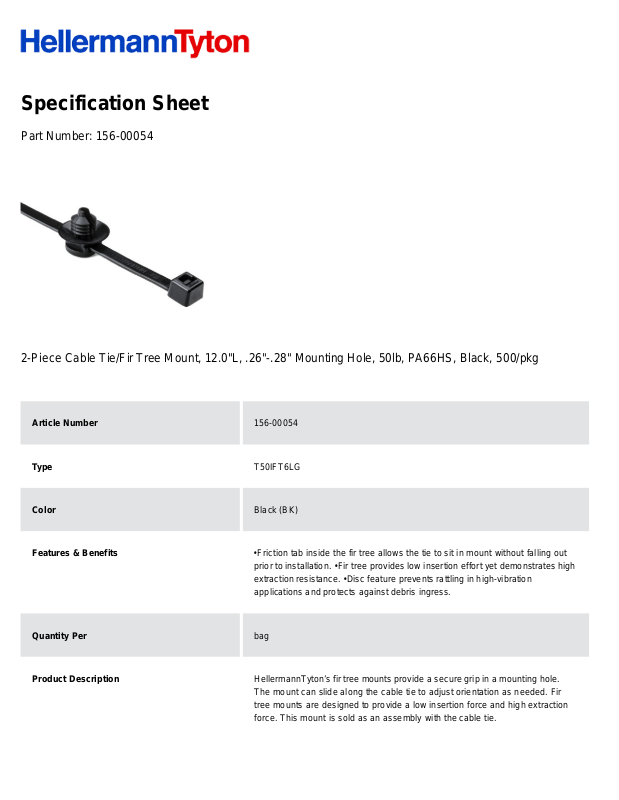

Page 1
Specification Sheet
Part Number:
156-00054
2-Piece Cable Tie/Fir Tree Mount, 12.0"L, .26"-.28" Mounting Hole, 50lb, PA66HS, Black, 500/pkg
Article Number
156-00054
Type
T50IFT6LG
Color
Black (BK)
Features & Benefits
•
Friction tab inside the fir tree allows the tie to sit in mount without falling out
prior to installation. •
Fir tree provides low insertion effort yet demonstrates high
extraction resistance. •
Disc feature prevents rattling in high-vibration
applications and protects against debris ingress.
Quantity Per
bag
Product Description
HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole.
The mount can slide along the cable tie to adjust orientation as needed. Fir
tree mounts are designed to provide a low insertion force and high extraction
force. This mount is sold as an assembly with the cable tie.
Page 2
Short Description
2-Piece Cable Tie/Fir Tree Mount, 12.0"L, .26"-.28" Mounting Hole, 50lb,
PA66HS, Black, 500/pkg
Global Part Name
T50IFT6LG-PA66HS/PA66HIRHS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
12.0
Length L (Metric)
305.0
Fixation Method
Fir Tree
Identification Plate Position
none
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Max (Imperial)
3.3
Bundle Diameter Max (Metric)
85.0
Thickness T (Metric)
1.2
Height H (Imperial)
0.05
Page 3
Height H (Metric)
1.2
Panel Thickness Min(Imperial)
0.03
Panel Thickness Max(Imperial)
0.236
Panel Thickness Min (Metric)
0.75
Panel Thickness Max (Metric)
6.0
Mounting Hole Diameter D (Imperial)
0.26 - 0.28
Mounting Hole Diameter D (Metric)
6.5 - 7.0 mm
Mounting Hole Diameter D Min (Imperial)
0.256
Mounting Hole Diameter D Max (Imperial)
0.276
Mounting Hole Diameter D Max (Metric)
7.0
Disc Diameter(Metric)
16.0
Disc Diameter (Imperial)
0.63
Material
Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) Polyamide
6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HIRHS PA66HS
Material Cable Tie
Polyamide 6.6 heat stabilized (PA66HS)
Page 4
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
