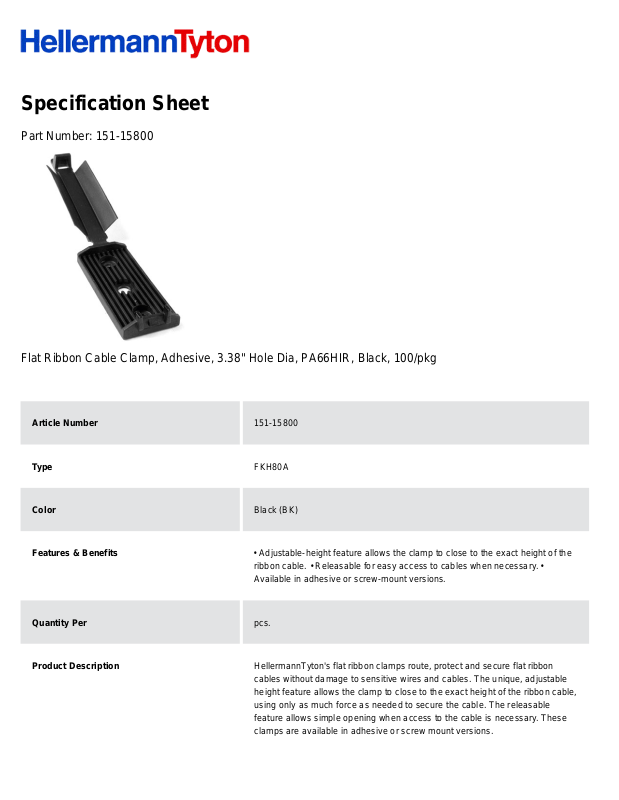

Specification Sheet
Part Number:
151-15800
Flat Ribbon Cable Clamp, Adhesive, 3.38'' Hole Dia, PA66HIR, Black, 100/pkg
Article Number
151-15800
Type
FKH80A
Color
Black (BK)
Features & Benefits
• Adjustable-height feature allows the clamp to close to the exact height of the
ribbon cable. • Releasable for easy access to cables when necessary. •
Available in adhesive or screw-mount versions.
Quantity Per
pcs.
Product Description
HellermannTyton's flat ribbon clamps route, protect and secure flat ribbon
cables without damage to sensitive wires and cables. The unique, adjustable
height feature allows the clamp to close to the exact height of the ribbon cable,
using only as much force as needed to secure the cable. The releasable
feature allows simple opening when access to the cable is necessary. These
clamps are available in adhesive or screw mount versions.
Short Description
Flat Ribbon Cable Clamp, Adhesive, 3.38'' Hole Dia, PA66HIR, Black, 100/pkg
Global Part Name
FKH80A-PA66HIR-BK
Length L (Imperial)
3.38
Length L (Metric)
86.0
Fixation Method
Pasting / Stick
Variant
Mounting clip
Width W (Imperial)
0.98
Width W (Metric)
25.0
Mounting Hole Diameter D (Imperial)
0.122
Mounting Hole Diameter D (Metric)
3.1 mm
Mounting Hole Diameter D Min (Imperial)
0.122
Mounting Hole Diameter D Max (Imperial)
0.122
Mounting Hole Diameter D Max (Metric)
3.1
Material
Polyamide 6.6, high impact modified (PA66HIR)
Material Shortcut
PA66HIR
